Camry XLE Sedan L4-2.4L (2AZ-FE) (2002)
/Page-915001.png)

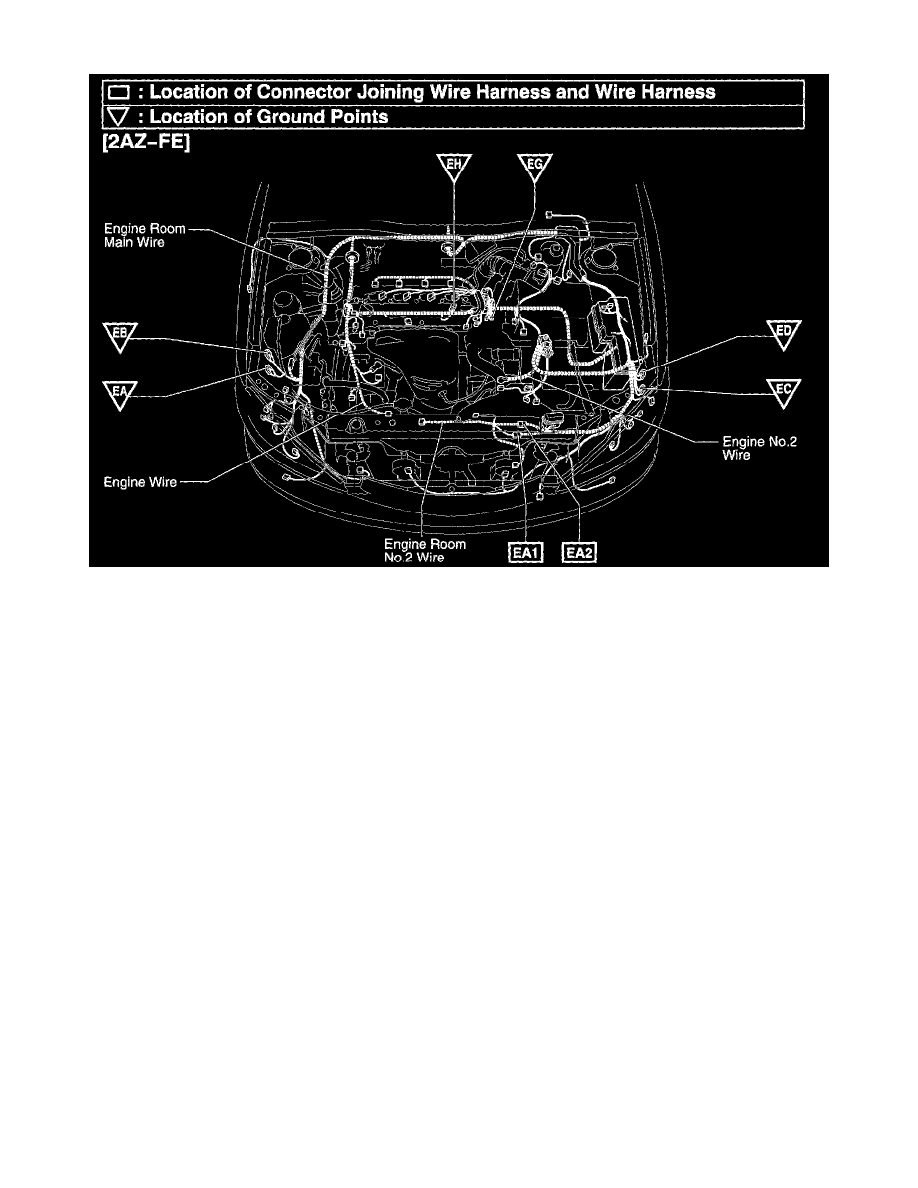

Auxiliary Power Outlet: Connector Locations
Engine Compartment
Ground
Location
EA
Right Fender
EB
Right Fender
EC
Left Fender
ED
Left Fender
EE
Surge Tank RH
EF
Rear Side of Surge Tank
EG
Left Side of cylinder Head
EH
Intake Side of Cylinder Block
Connector
Location
EA1
Engine Room Main Wire and Engine Room No.2 Wire (Radiator Side Support LH)
EA2
Engine Room Main Wire and Engine Room No.2 Wire (Radiator Side Support LH)
EB1
Engine Wire and Sensor Wire (Left Back of Cylinder Head)
