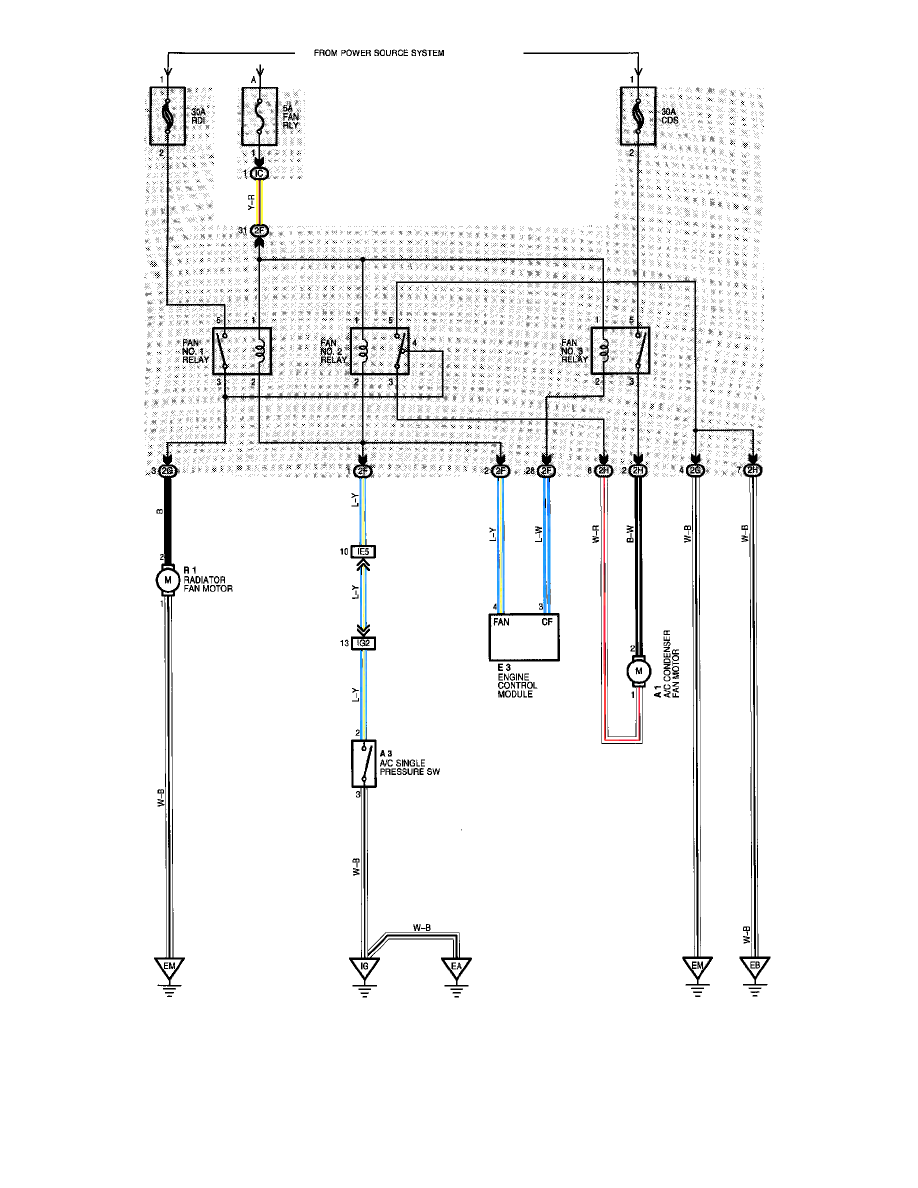

Radiator Fan And Condenser Fan

Engine, Cooling and Exhaust
Cooling System
Radiator Cooling Fan / Radiator Cooling Fan Motor / Component Information
Diagrams / Diagram Information and Instructions
Page 1483

Diagram Information and Instructions|Page 1484 > < Diagram Information and Instructions|Page 1482
