Celica GT L4-1.8L (1ZZ-FE) (2001)
/Page-1087002.png)

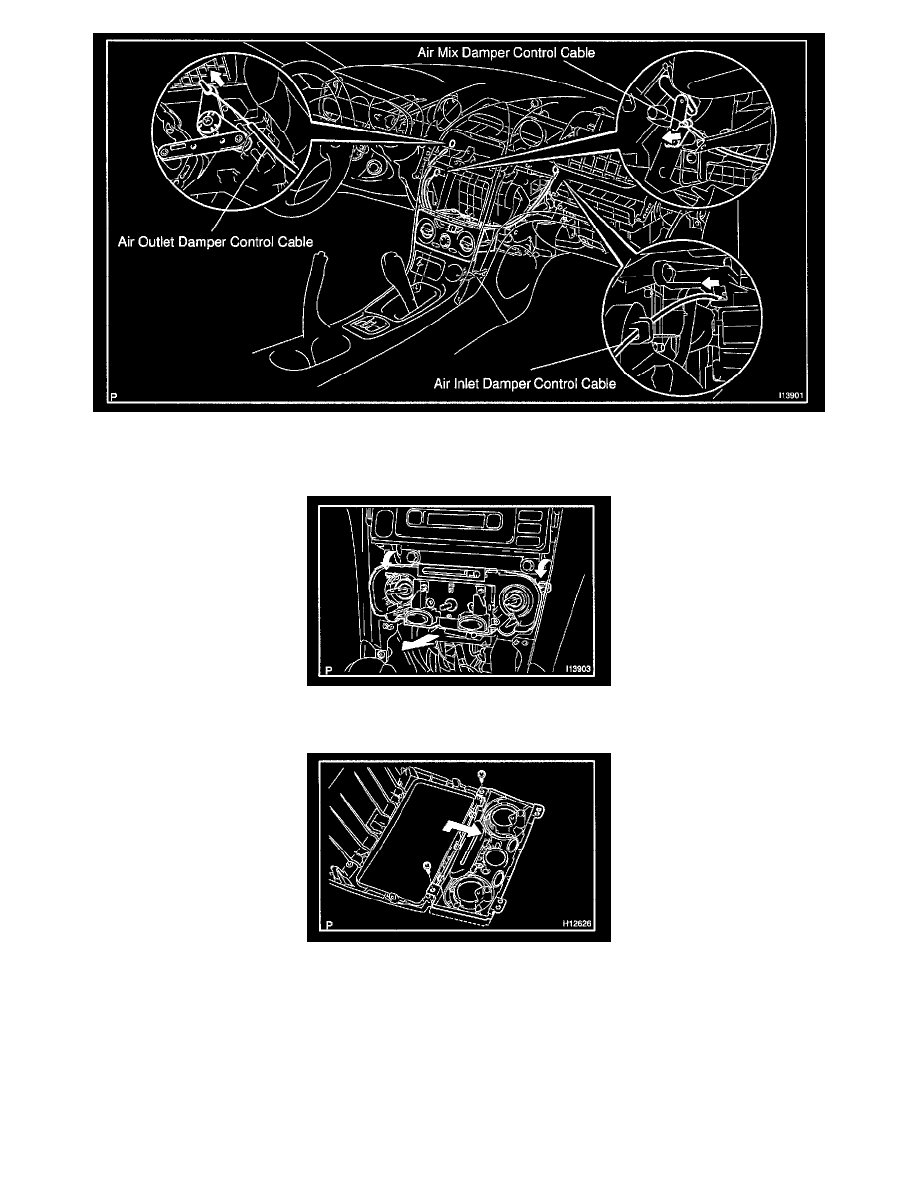

2. DISCONNECT HEATER CONTROL CABLES
NOTE: When the air mix damper control cables is disconnected, should not bend the cable.
3. REMOVE HEATER CONTROL ASSEMBLY
Release the 2 claws and pull out the A/C control assembly, then disconnect the connector.
4. REMOVE HEATER CONTROL PANEL
a. Remove the 2 screws.
b. Slide and remove the A/C control assembly.
INSTALLATION
