Celica GT L4-1.8L (1ZZ-FE) (2001)
/Page-1431001.png)
Brake Lamp: Component Tests and General Diagnostics
Combination Meter

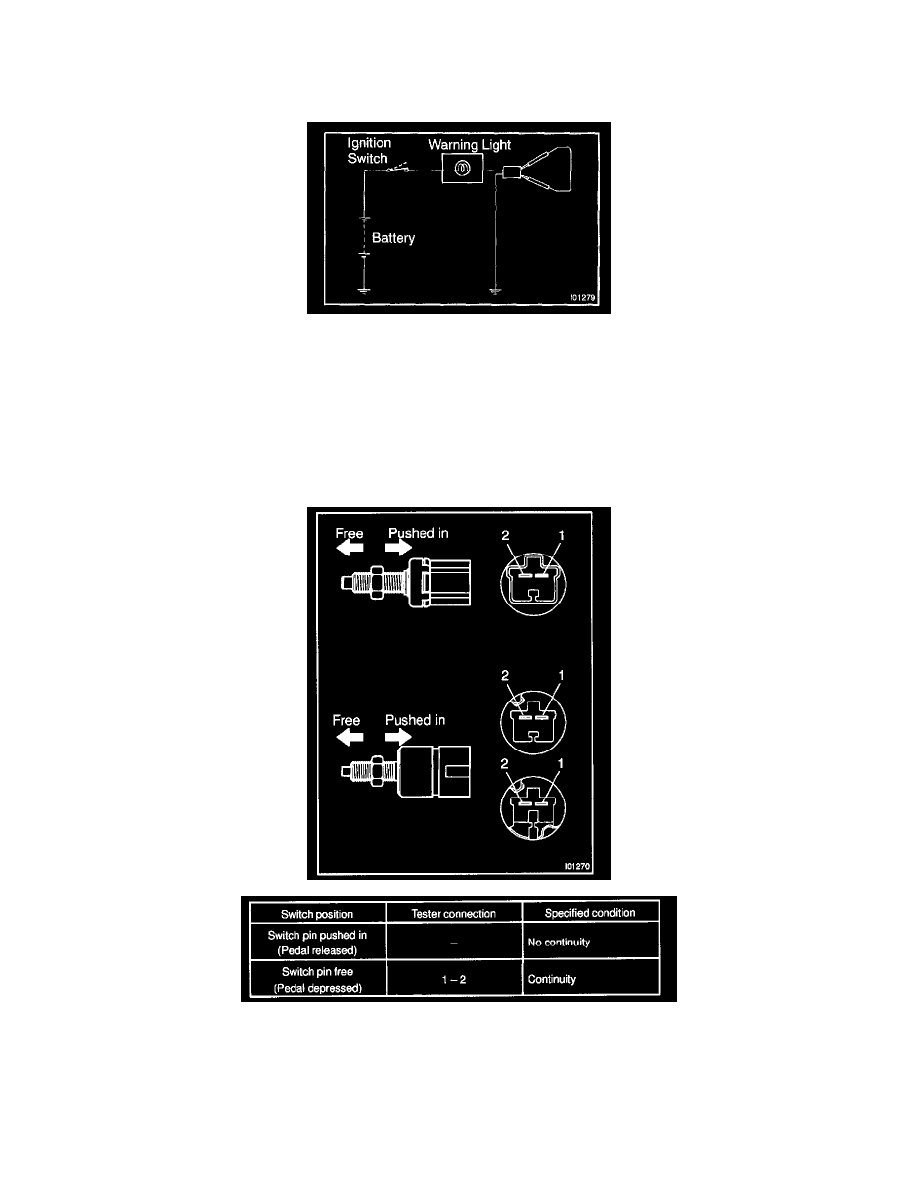

INSPECT BRAKE WARNING SYSTEM LIGHT
a. Disconnect the connector from the brake fluid warning switch.
b. Connect terminals of the wire harness side of the level warning switch connector.
c. Start the engine, check that the warning light lights up. If the warning light does not light up, test the bulb or wire harness.
Component Inspection
INSPECTION
INSPECT STOP LIGHT SWITCH CONTINUITY
w/o cruise control system:
If continuity is not as specified, replace the switch.
