Celica GT L4-1.8L (1ZZ-FE) (2001)
/Page-1497001.png)

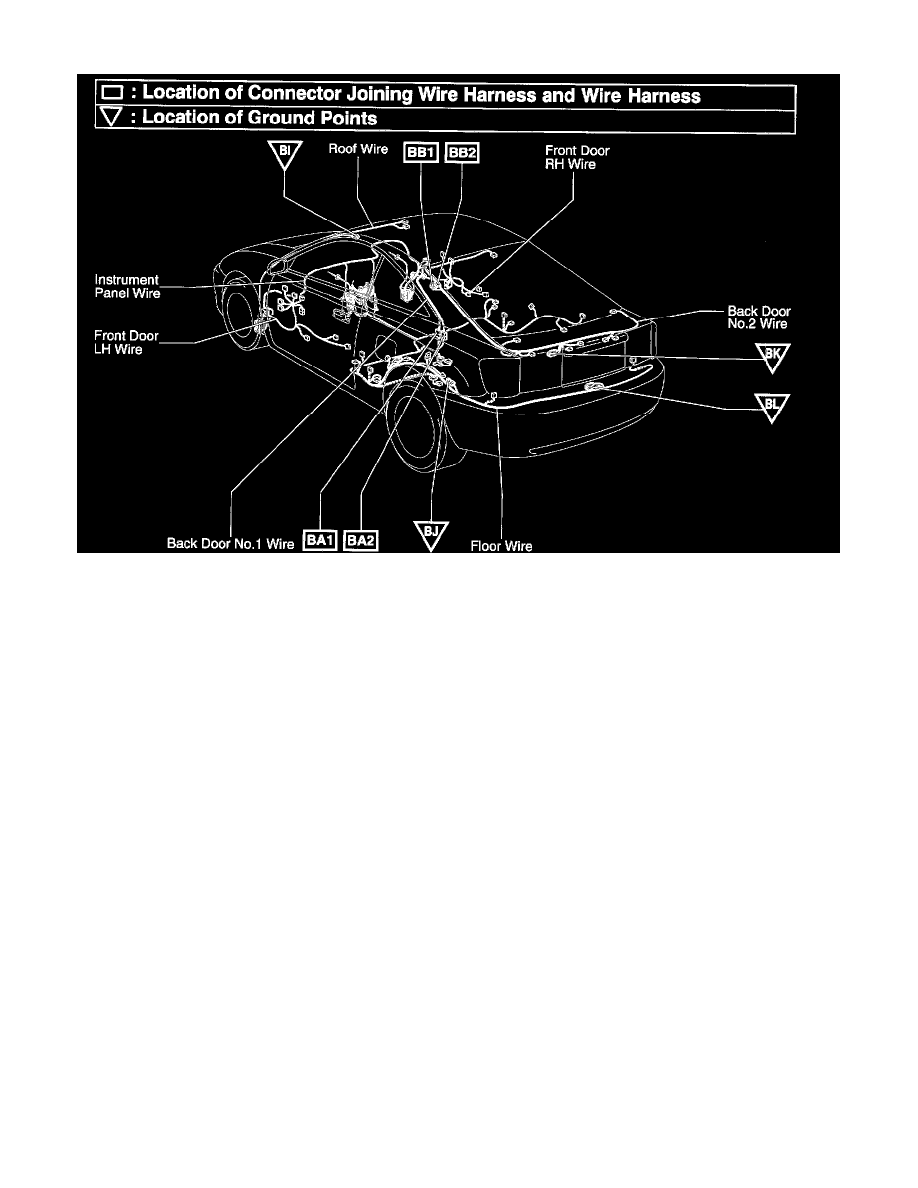

Turn Signal Lamp: Ground Locations
Body Ground Points & Harness To Harness Connectors
Ground
Location
BI
Roof Left
BJ
Luggage Room Left
BK
Back Door Left
BL
Back Panel Center
Connector Location
BA1
Back Door No.1 Wire and Floor Wire (Quarter Panel LH)
BA2
Back Door No.1 Wire and Floor Wire (Quarter Panel LH)
BB1
Back Door No.2 Wire and Back Door No.1 Wire (Back Door Upper Left)
BB2
Back Door No.2 Wire and Back Door No.1 Wire (Back Door Upper Left)
