Initial Inspection and Diagnostic Overview|Page 1974 > < Initial Inspection and Diagnostic Overview|Page 1972

Celica GT L4-1.8L (1ZZ-FE) (2001)

Page 11
background image

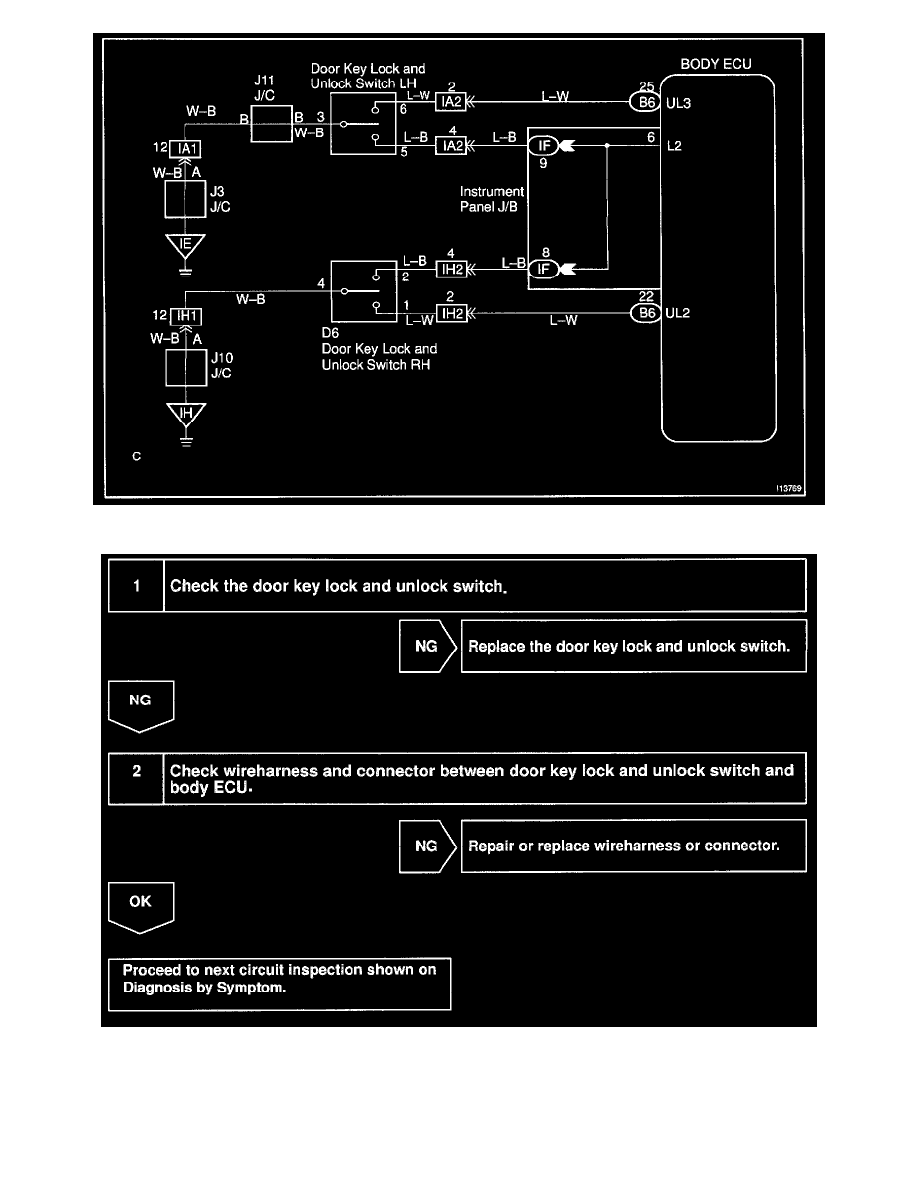

Wiring Diagram

Steps 1 - 2

INSPECTION PROCEDURE

Door Lock Motor Circuit

Initial Inspection and Diagnostic Overview|Page 1974 > < Initial Inspection and Diagnostic Overview|Page 1972
