Celica GT L4-1.8L (1ZZ-FE) (2001)

Page 1
background image

Engine Control Module: Component Tests and General Diagnostics

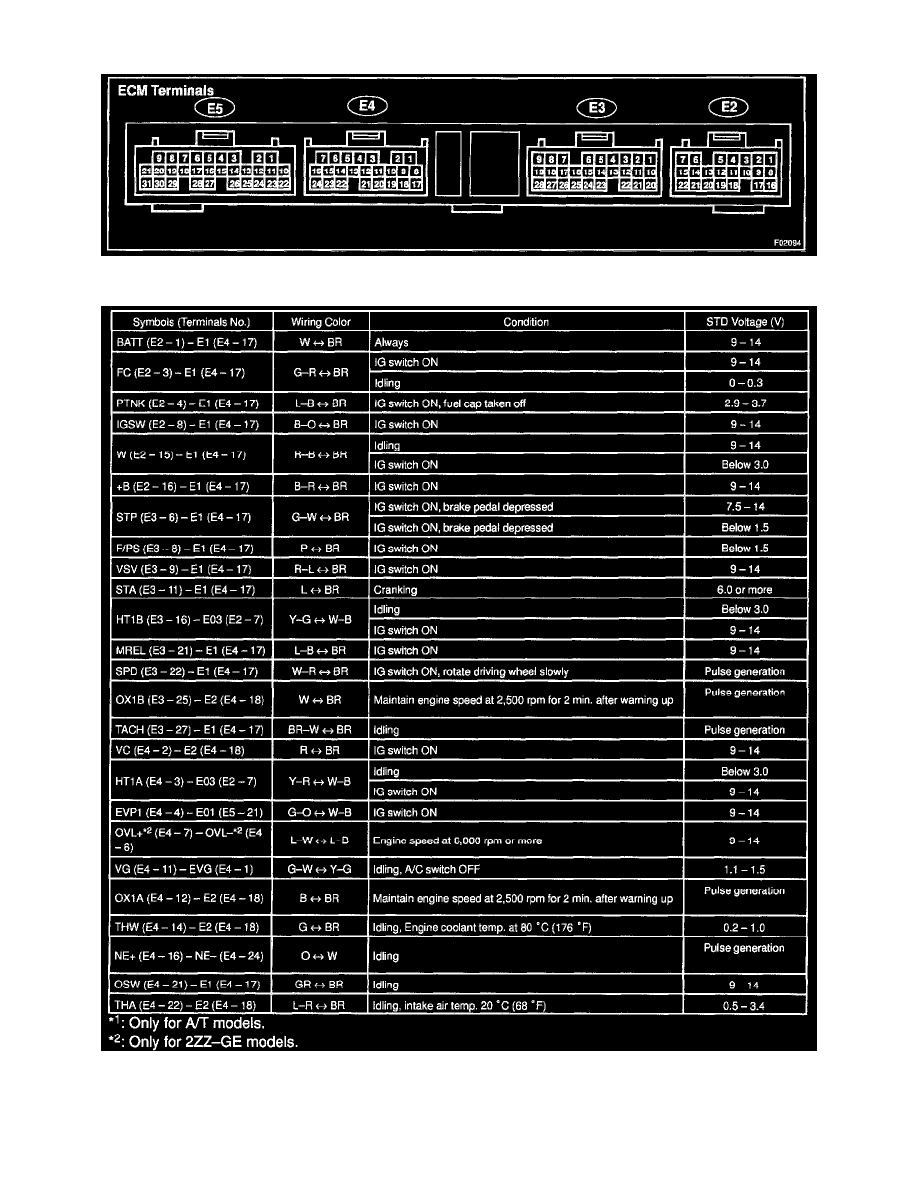

Terminals Of ECM - Connector View

Terminals Of ECM - Connector Pin-outs (Part 1)
