Celica GT L4-1.8L (1ZZ-FE) (2001)

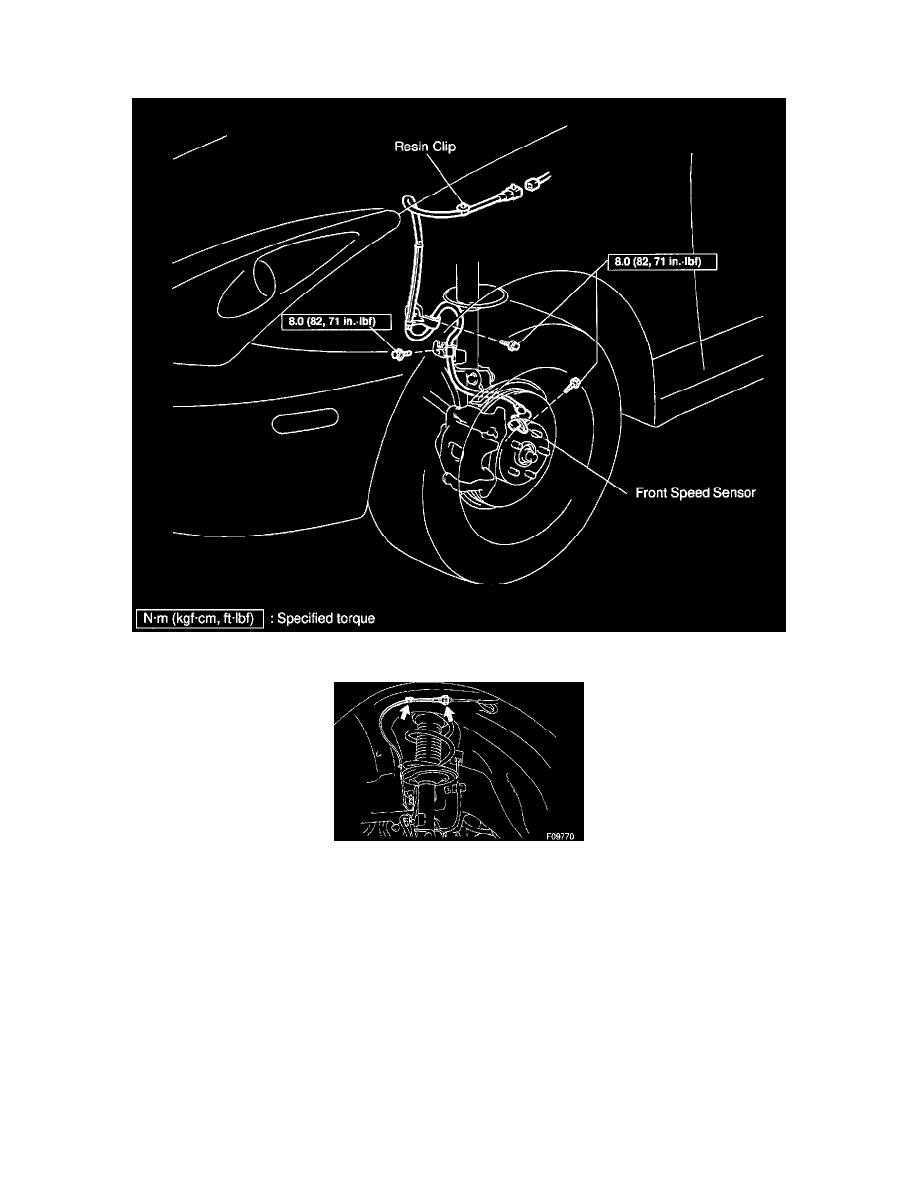

a. Remove the 2 clamp bolts holding the sensor harness from the body and shock absorber.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
b. Remove the speed sensor installation bolt from the steering knuckle.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
NOTICE: At the time of installation, please refer to the following item.
^
There are no foreign objects on the sensor or the part of the knuckle to which the sensor is to be installed.
^
The sensor is installed flat against the knuckle when you tighten the bolt.
INSTALLATION
Installation is in the reverse order of removal.
AFTER INSTALLATION, CHECK SPEED SENSOR SIGNAL.
