Celica GT L4-1.8L (1ZZ-FE) (2001)
/Page-935004.png)

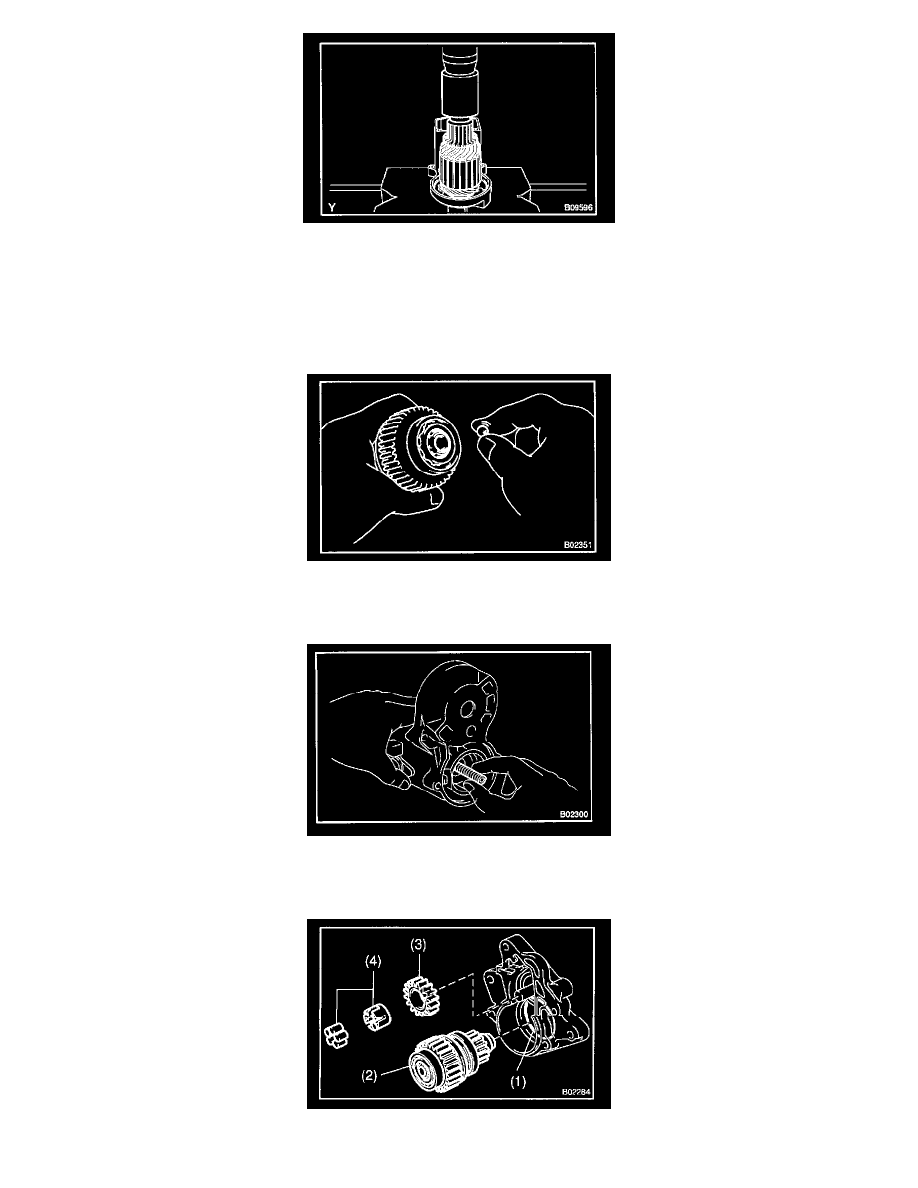

b. Apply grease to the armature bearings.
c. 1ZZ-FE:
Install the armature to the magnetic switch assembly.
d. 2ZZ-GE:
Using a press, install the armature to the magnetic switch assembly.
2. INSERT STEEL BALL INTO CLUTCH SHAFT HOLE
a. Apply grease to the steel ball.
b. Insert the steel ball into the clutch shaft hole.
3. INSTALL STARTER HOUSING, CLUTCH ASSEMBLY AND GEARS
a. Apply grease to the return spring.
b. Insert the return spring into the magnetic switch hole.
c. Place these parts on the starter housing:
