Celica GT L4-18L: Automatic Transmission Mode Indicator - Diagrams - Page 2942

Page 4
background image

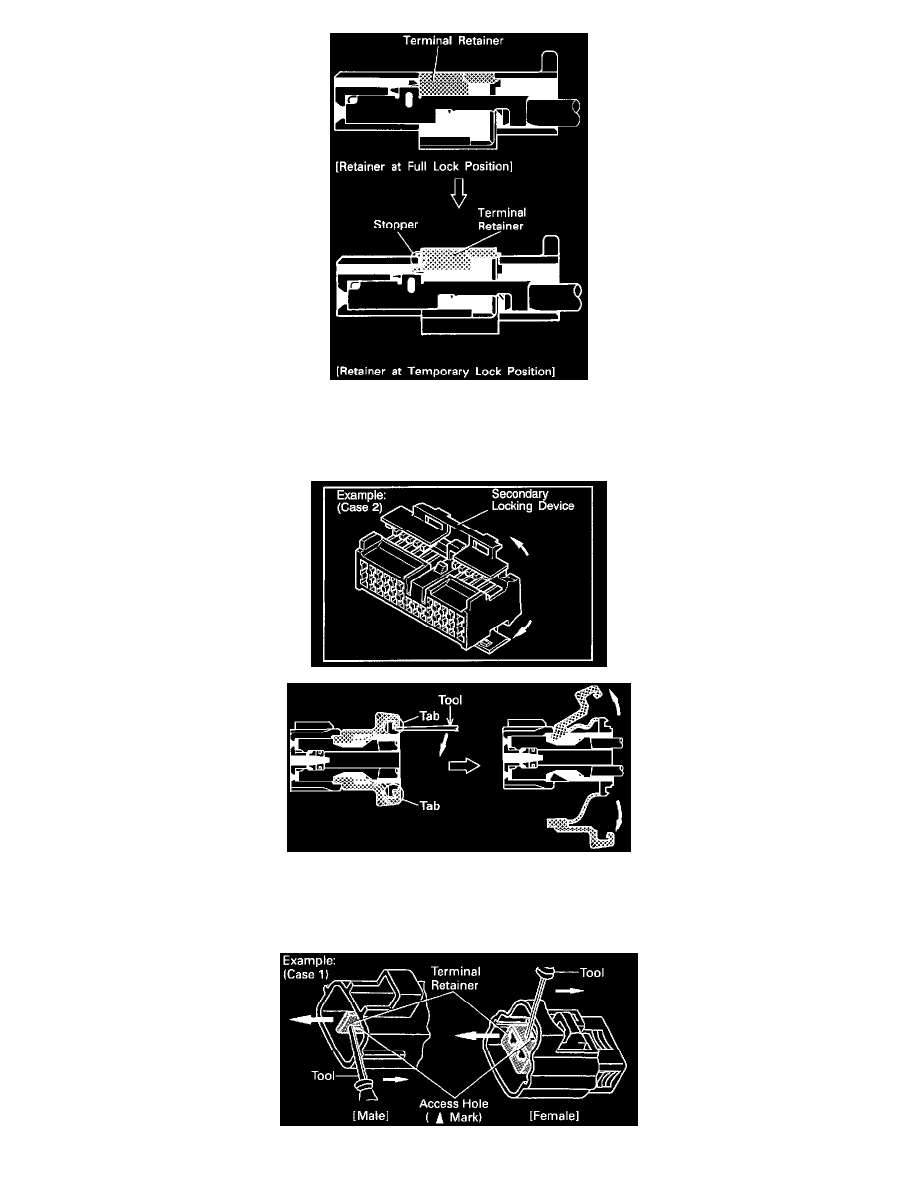

Non-Waterproof Type Connector

"Case 1"
Raise the terminal retainer up to the temporary lock position.

Non-Waterproof Type Connector

"Case 2"
Open the secondary locking device.
