Celica GT Liftback L4-2164cc 2.2L DOHC (5S-FE) MFI (1999)

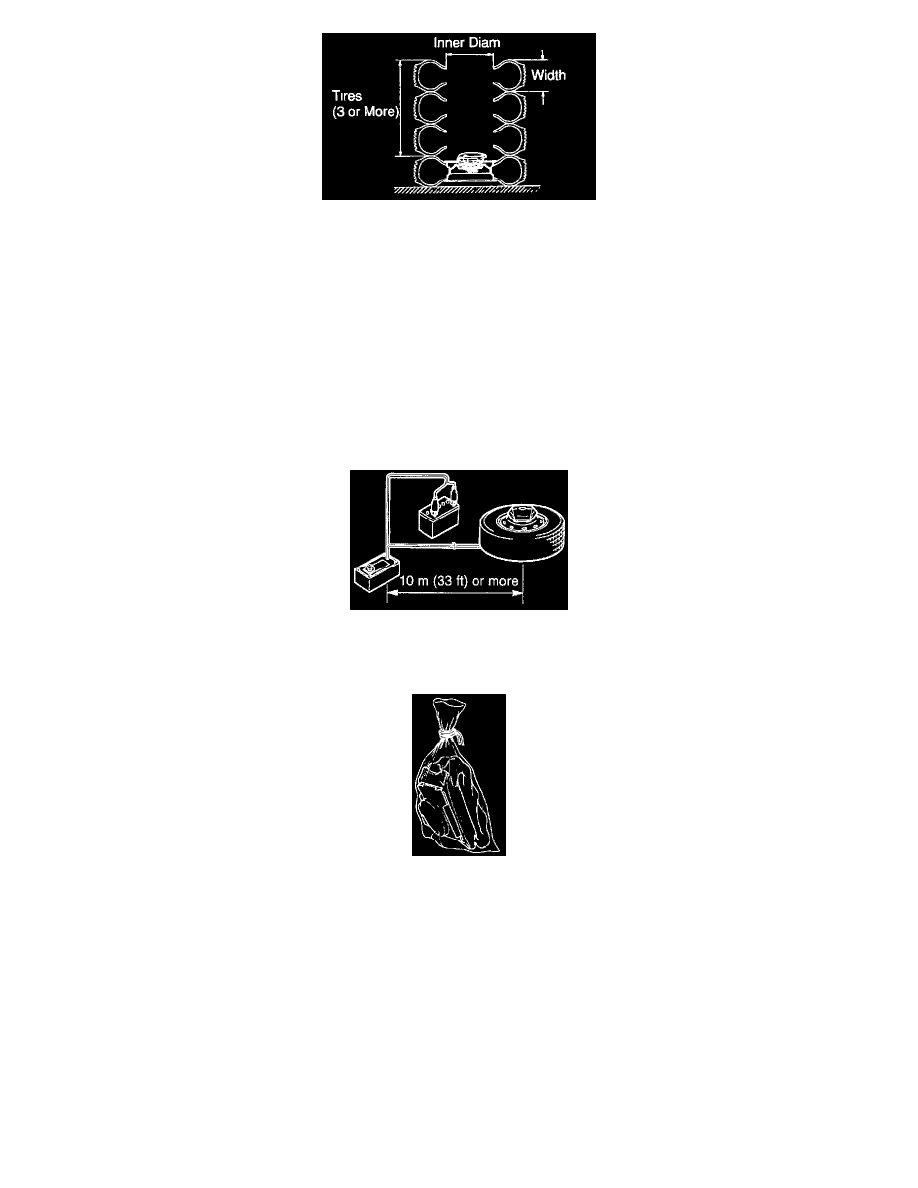

Covering method using tires:
Place at least 3 tires without disc wheel on top of the disc wheel with tire to which the steering wheel pad is tied.
Tire size: Must exceed the following dimensions
Width: 185 mm (7.87 in.)
Inner diameter: 360 mm (14.17 in.)
CAUTION: Do not use tires with disc wheels.
NOTE: The tires may be marked by the airbag deployment, so use the redundant tires.
G. Deploy the airbag.
1. Connect the SST red clip to the battery positive (+) terminal and the black clip to the battery negative (-) terminal.
2. Check that no one is within 10 m (33 ft) area around the disc wheel which the steering wheel pad is tied to.
3. Press the SST activation switch and deploy the airbag.
HINT: The airbag deploys simultaneously as the LED of the SST activation switch lights up.
H. Dispose of the steering wheel pad (with airbag).
CAUTION:
-
The steering wheel pad is very hot when the airbag is deployed, so leave it alone for at least 30 minutes after deployment.
-
Use gloves and safety glasses when handling a steering wheel pad with deployed airbag.
-
Always wash your hands with water after completing the operation.
-
Do not apply water, etc. to a steering wheel pad with deployed airbag.
1. Remove the steering wheel pad from the disc wheel.
2. Place the steering wheel pad in a vinyl bag, tie the end tightly and dispose of it in the same way as other general parts disposal.
