Corolla L4-1.8L (2ZR-FE) (2009)
/Page-644001.png)
Camshaft Bearing: Specifications
CAMSHAFT BEARING CAP

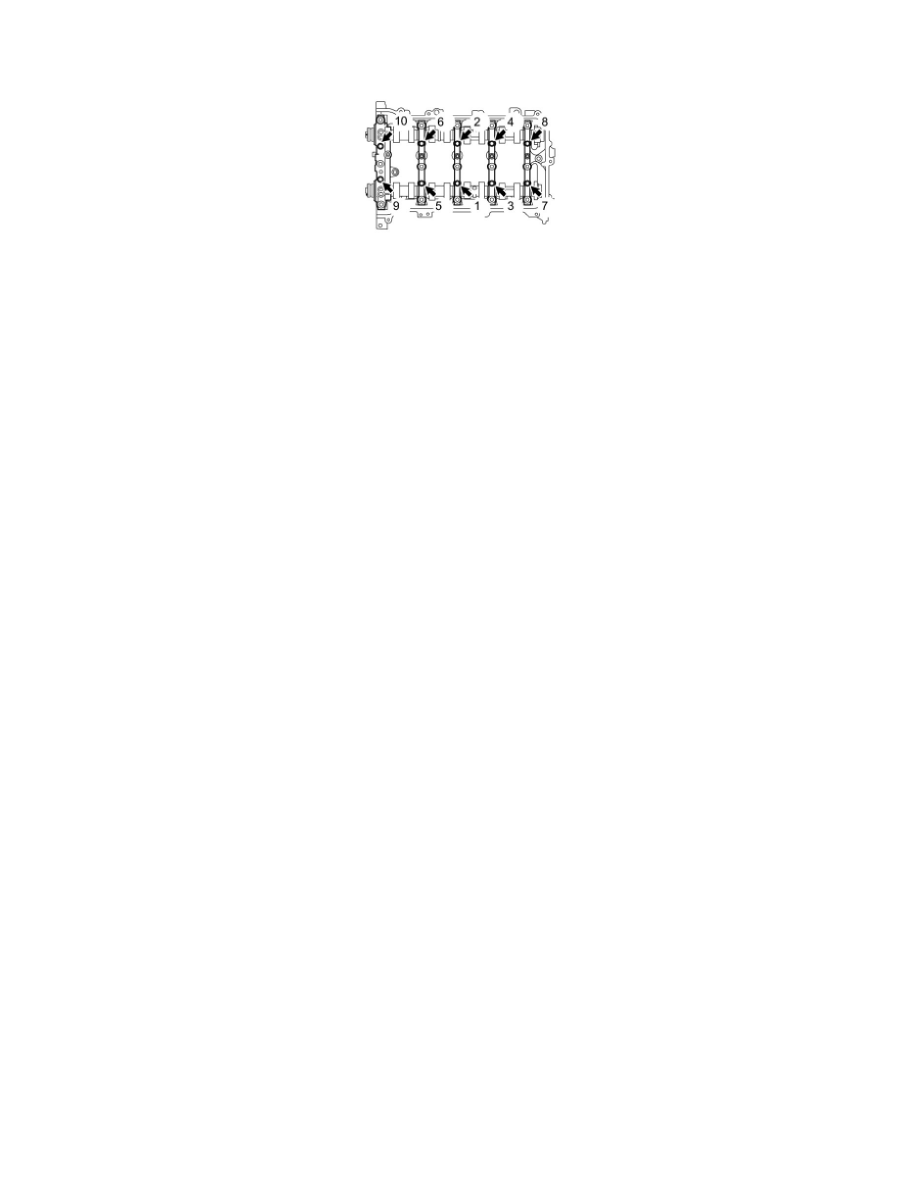

Tighten the 10 bolts in the order shown in the illustration.
Torque.......................................................................................................................................................................................16 Nm (163 kgf-cm, 12 ft-lbf)
