Corolla L4-1.8L (2ZR-FE) (2009)
/Page-704001.png)
Intake Manifold: Specifications

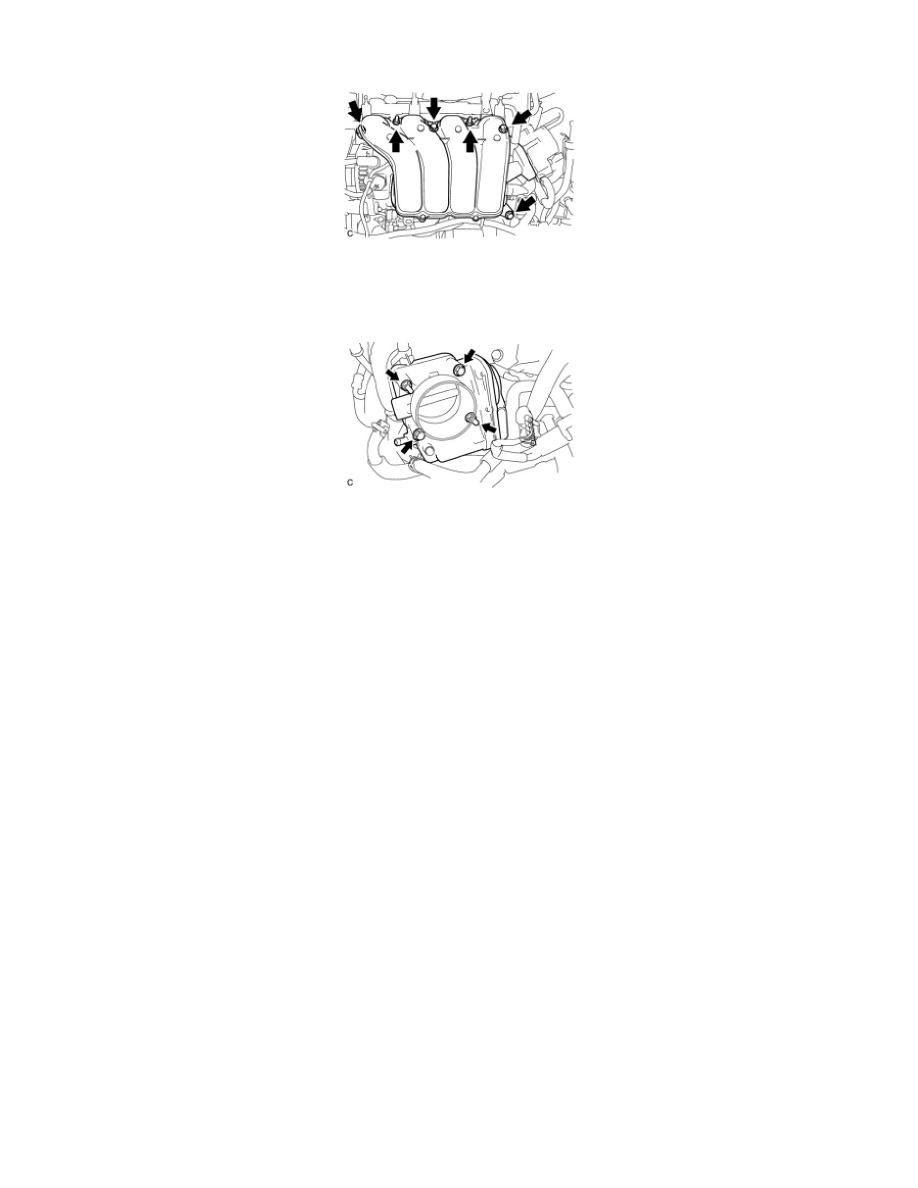

INTAKE MANIFOLD
Install the intake manifold and intake manifold stay with the 4 bolts and 2 nuts.
Torque.......................................................................................................................................................................................28 Nm (286 kgf-cm, 21 ft-lbf)
THROTTLE BODY
Install the throttle body assembly with the 2 bolts and 2 nuts.
Torque.........................................................................................................................................................................................10 Nm (102 kgf-cm, 7 ft-lbf)
