Corolla L4-1.8L (2ZR-FE) (2009)

  • Heating and Air Conditioning
  • Air Door, HVAC
  • Air Door Actuator / Motor, HVAC
  • Component Information
  • Locations
  • Air Conditioning System (for Automatic Air Conditioning System)

Page 1
background image

Air Door Actuator / Motor: Locations
Air Conditioning System (for Automatic Air Conditioning System)

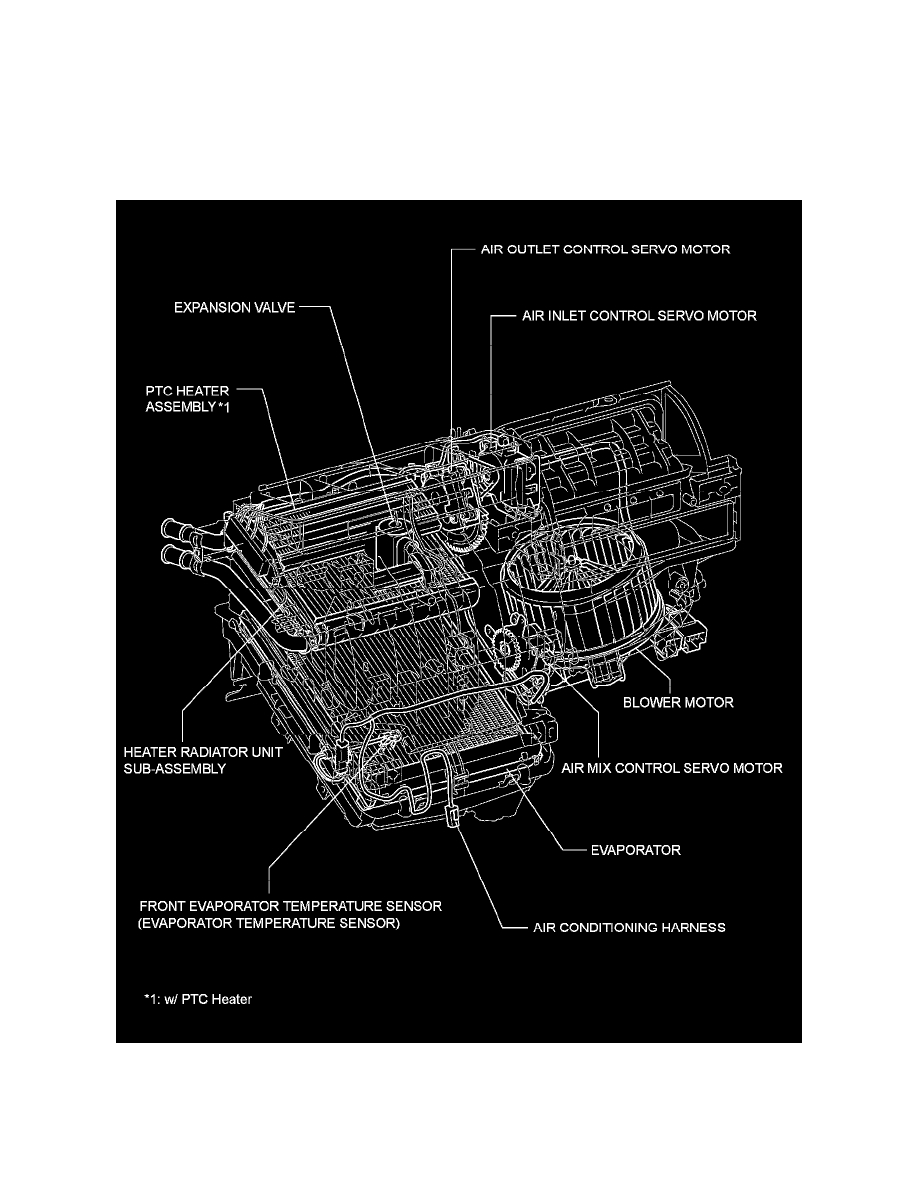

HEATING / AIR CONDITIONING: AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System): PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
