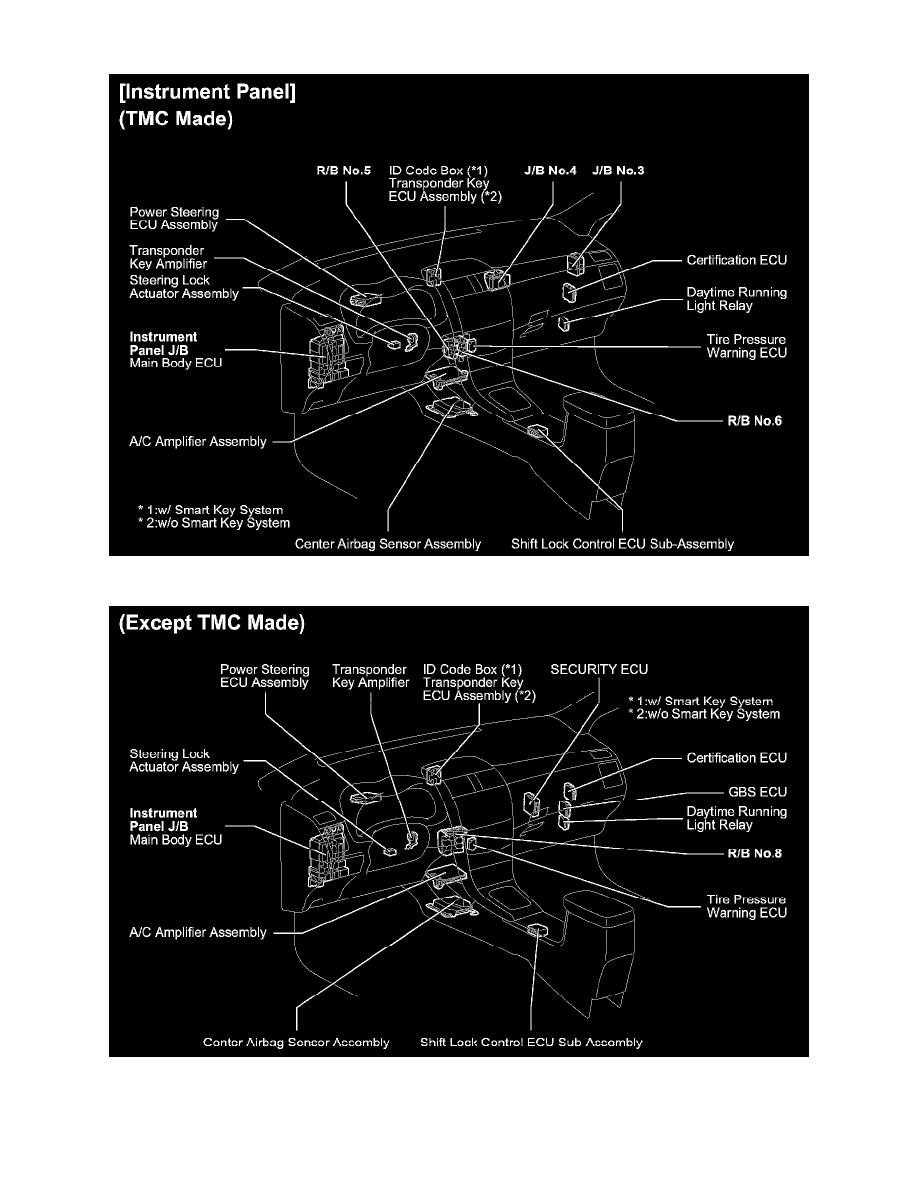

Body Control Module: Locations

Instrument Panel (TMC Made)

Instrument Panel (Except TMC Made)

Powertrain Management
Relays and Modules - Powertrain Management
Relays and Modules - Computers and Control Systems
Body Control Module
Component Information
Locations
