Corolla L4-2.4L (2AZ-FE) (2010)
/Page-329002.png)

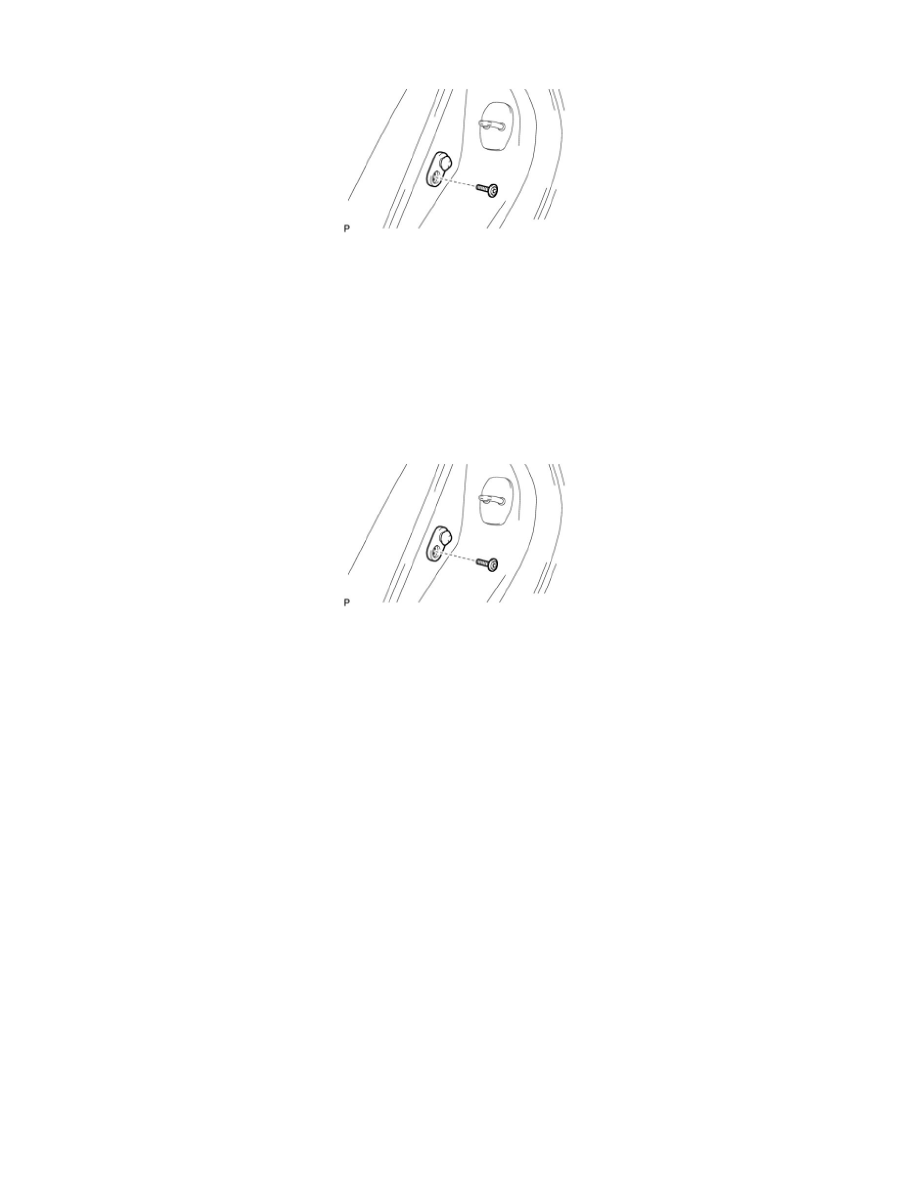

(a) Using a "TORX" Socket Wrench T-type T30, remove the "TORX" bolt.
(b) Disconnect the connector and remove the rear door courtesy switch assembly.
Installation
LIGHTING (INT): REAR DOOR COURTESY SWITCH: INSTALLATION
1. INSTALL REAR DOOR COURTESY SWITCH ASSEMBLY
(a) Connect the connector.
(b) Using a "TORX" Socket Wrench T-type T30, install the rear door courtesy switch assembly with the "TORX" bolt.
Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)
