Toyota Workshop Service and Repair Manuals > Corolla CE Sedan 4-Door L4-1587cc 1.6L DOHC MFI (1997) > Accessories and Optional Equipment | Relays and Modules - Accessories and Optional Equipment | Alarm Module, (Vehicle Antitheft) | Component Information | Testing and Inspection | Standard Values of ECU Terminals | Page 5967

Standard Values of ECU Terminals|Page 5968 > < Standard Values of ECU Terminals

Page 2

background image

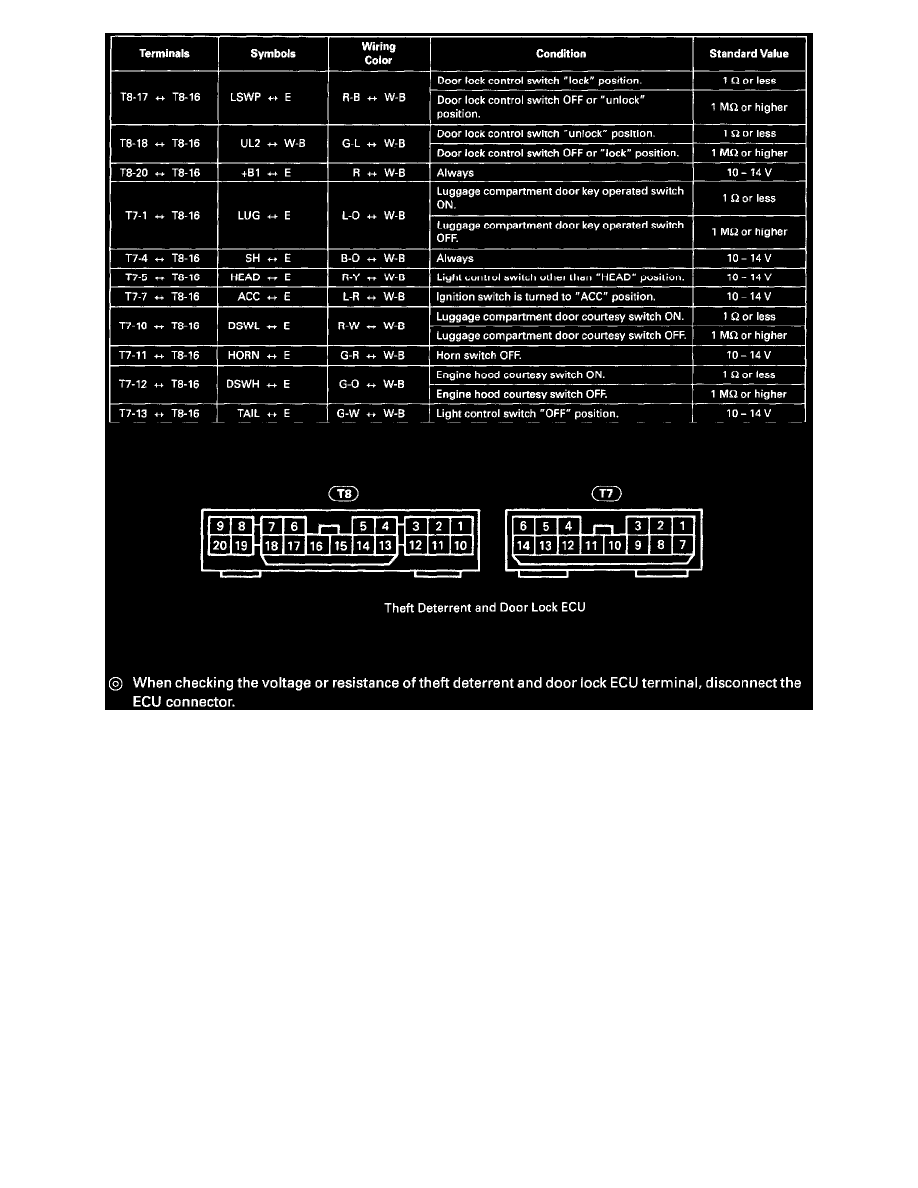

Standard Values of ECU Terminals (2 Of 2)

Accessories and Optional Equipment
Relays and Modules - Accessories and Optional Equipment
Alarm Module, (Vehicle Antitheft) / Testing and Inspection / Standard Values of ECU Terminals
Page 5967

Standard Values of ECU Terminals|Page 5968 > < Standard Values of ECU Terminals
