Connector

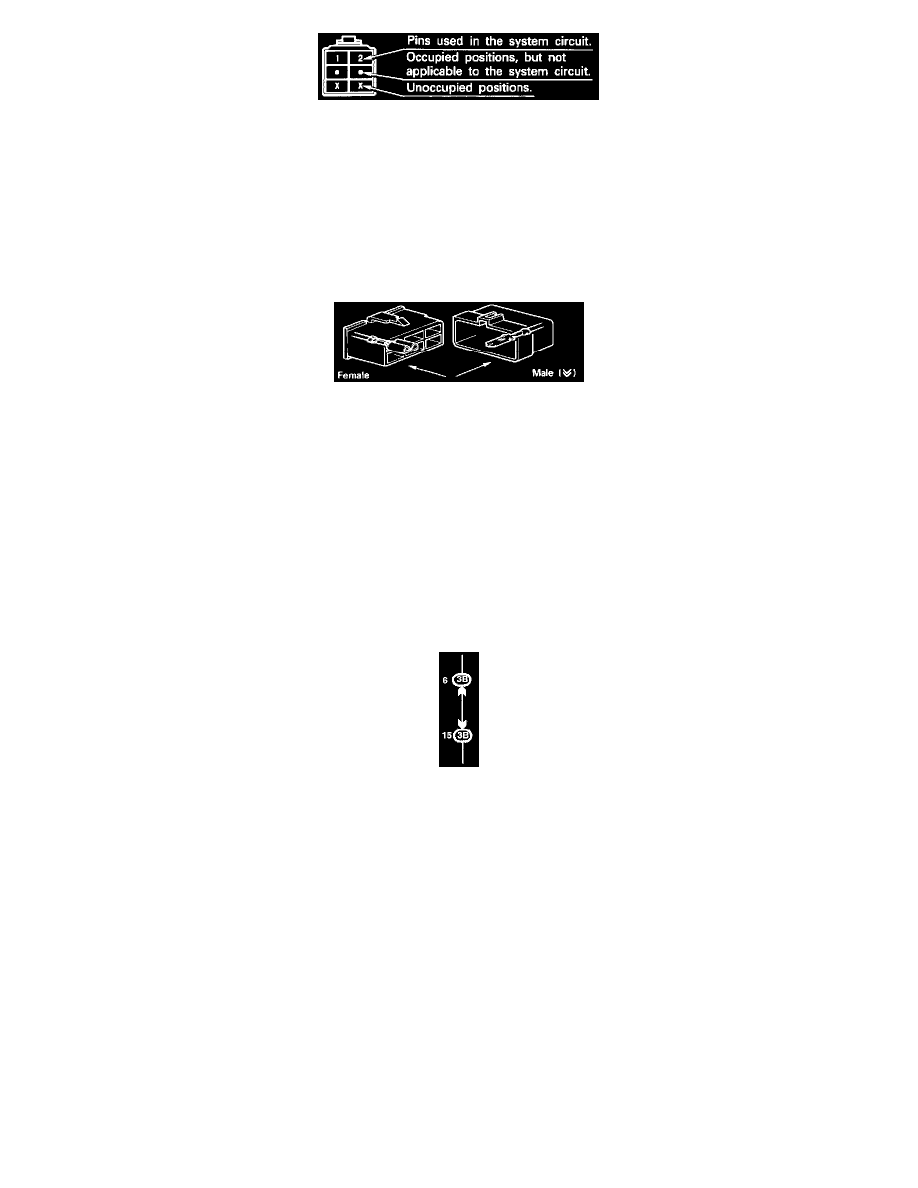

The pins shown are only for the highest grade, or only include those in the specification.
D: Connector Color
Connectors not indicated are milky white in color.
E: ( ) is used to indicate different wiring and connector, etc. when the vehicle model, Engine type, or specification is different.
F: Indicates related system.
G: Indicates the wiring harness and wiring harness connector. The wiring harness with male terminal is shown with arrows (V V) Outside numerals
are pin numbers.
Wiring Harness Connector
The first letter of the code for each wiring harness and wiring harness connector(as indicates the component's location, e.g, "E" for the Engine
Compartment, "I" for the Instrument Panel and Surrounding area, and "B" for the Body and Surrounding area.
When more than one code has the first and second letters in common, followed by numbers (e.g, IH1, lH2) this indicates the same type of wiring
harness and wiring harness connector.
H: Represent a part (all parts are shown in sky blue). The code is the same as the code used in parts position
I: Junction Block (The number in the circle is the J/B No. and the connector code is shown beside it). Junction Block are shaded to clearly separate
them from other parts (different junction blocks are shaded differently for further clarification).
Example:
Junction Block
J : Indicates the wiring color.
Wire colors are indicated by an alphabetical code.
B = Black
BR = Brown
G = Green
GR = Gray
L = Blue
LG = Light Green
0 = Orange
P = Pink
R = Red
V = Violet
W = White
Y = Yellow
The first letter indicates the basic wire color and the second letter indicates the color of the stripe.
