Page 1

background image

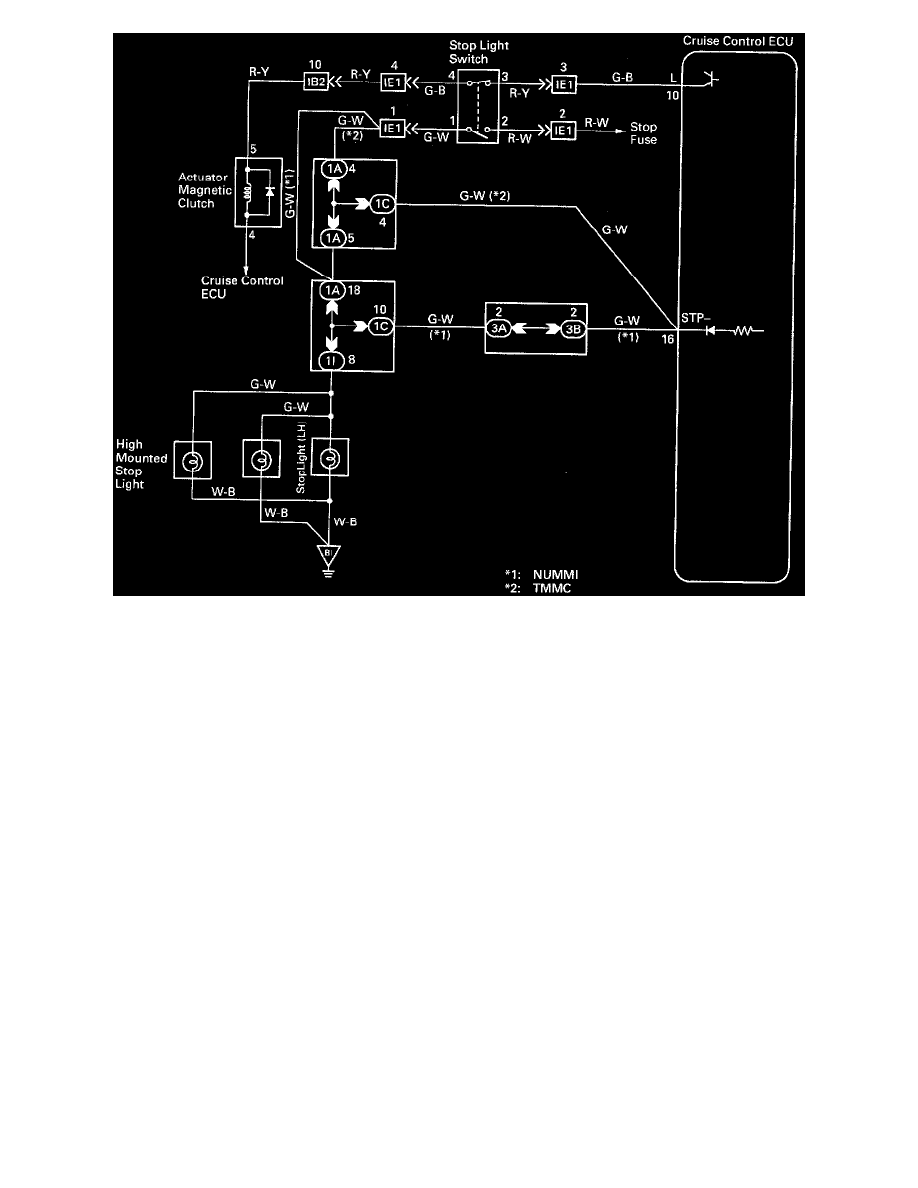

Stop Light Switch Circuit

Cruise Control
Stop Light Switch <--> [Brake Switch (Cruise Control)] / Diagrams / Diagram Information and Instructions
Page 6323
