Air Conditioning Switch: Testing and Inspection

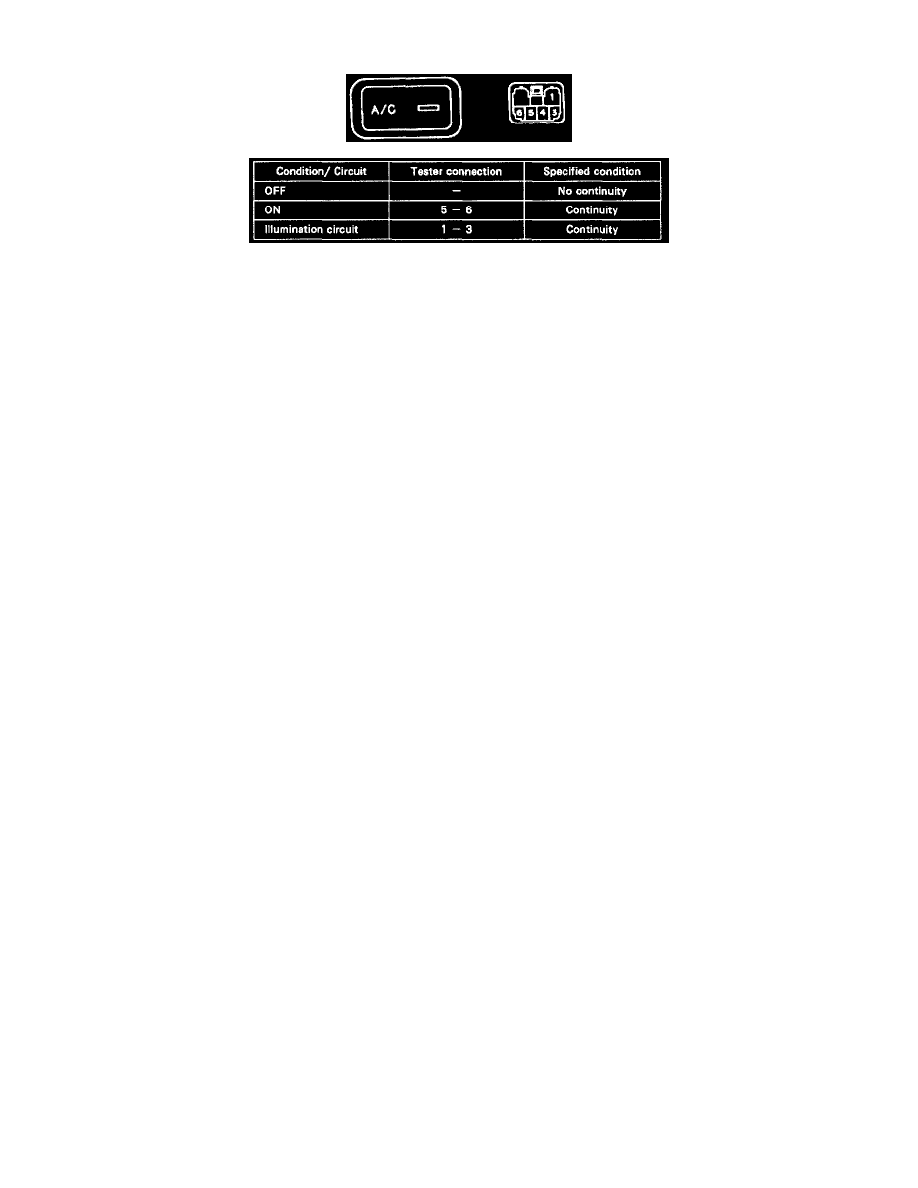

Inspect A/C Switch Continuity

Switch Continuity:
If continuity is not as specified, replace the switch.

Illumination Circuit:
If continuity is not as specified, test the bulb.
