Corolla CE Sedan 4-Door L4-1587cc 1.6L DOHC MFI (1997)
Relays and Modules
Relays and Modules - HVAC
Blower Motor Relay
Component Information
Locations
Page 1
Blower Motor Relay: Locations

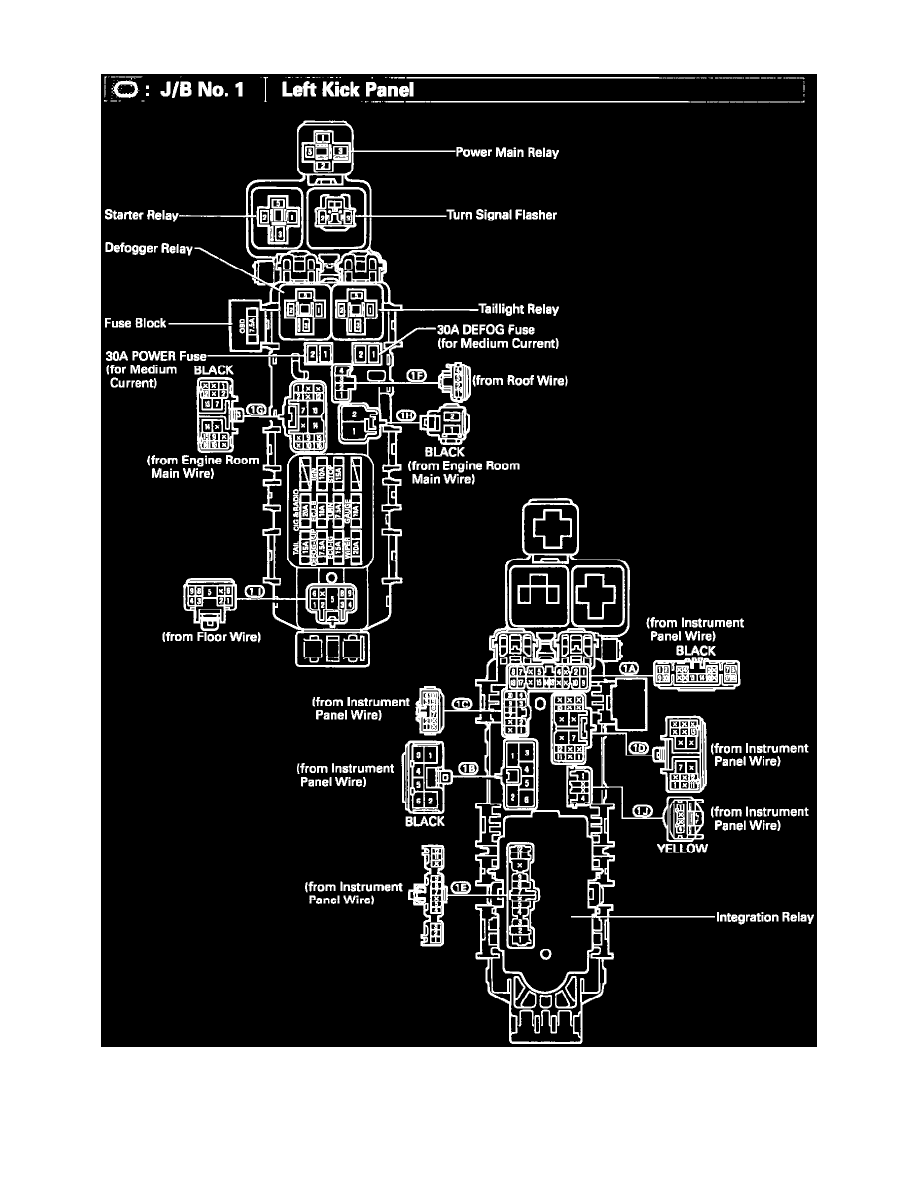

Locations-J/B No.1 Left Kick Panel (Fig 20)
