Corolla S Sedan L4-1.8L (1ZZ-FE) (2002)
/Page-711001.png)
ABS Light: Testing and Inspection
CIRCUIT DESCRIPTION
If the ECU detects a trouble, it lights the ABS warning light at the same time when ABS control is prohibited. At this time, the ECU records a DTC in
memory.
Connect terminals Tc and E1 of the DLC 1 and make the ABS warning light blink and output the DTC.

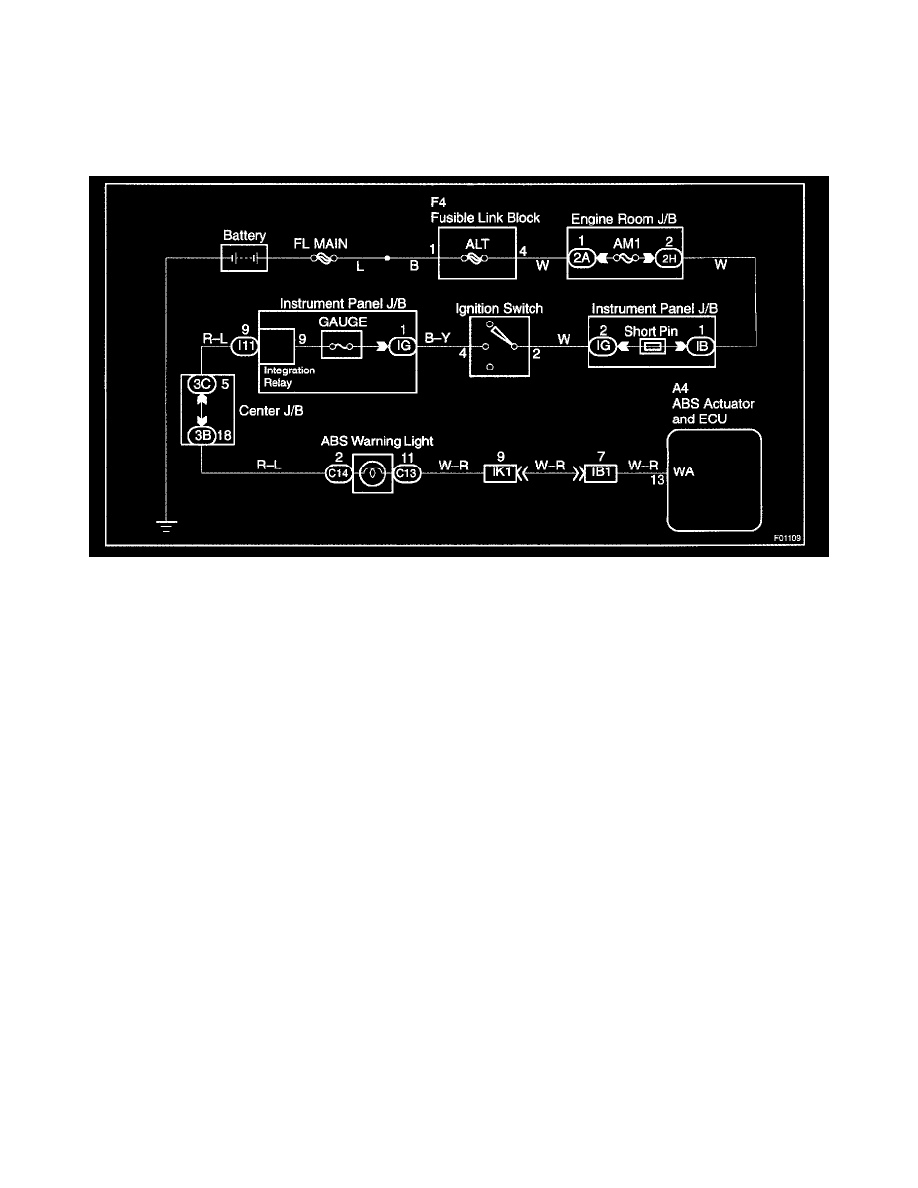

Wiring Diagram
