Corolla S Sedan L4-1.8L (1ZZ-FE) (2002)
/Page-1315001.png)
Washer Fluid Level Switch: Testing and Inspection

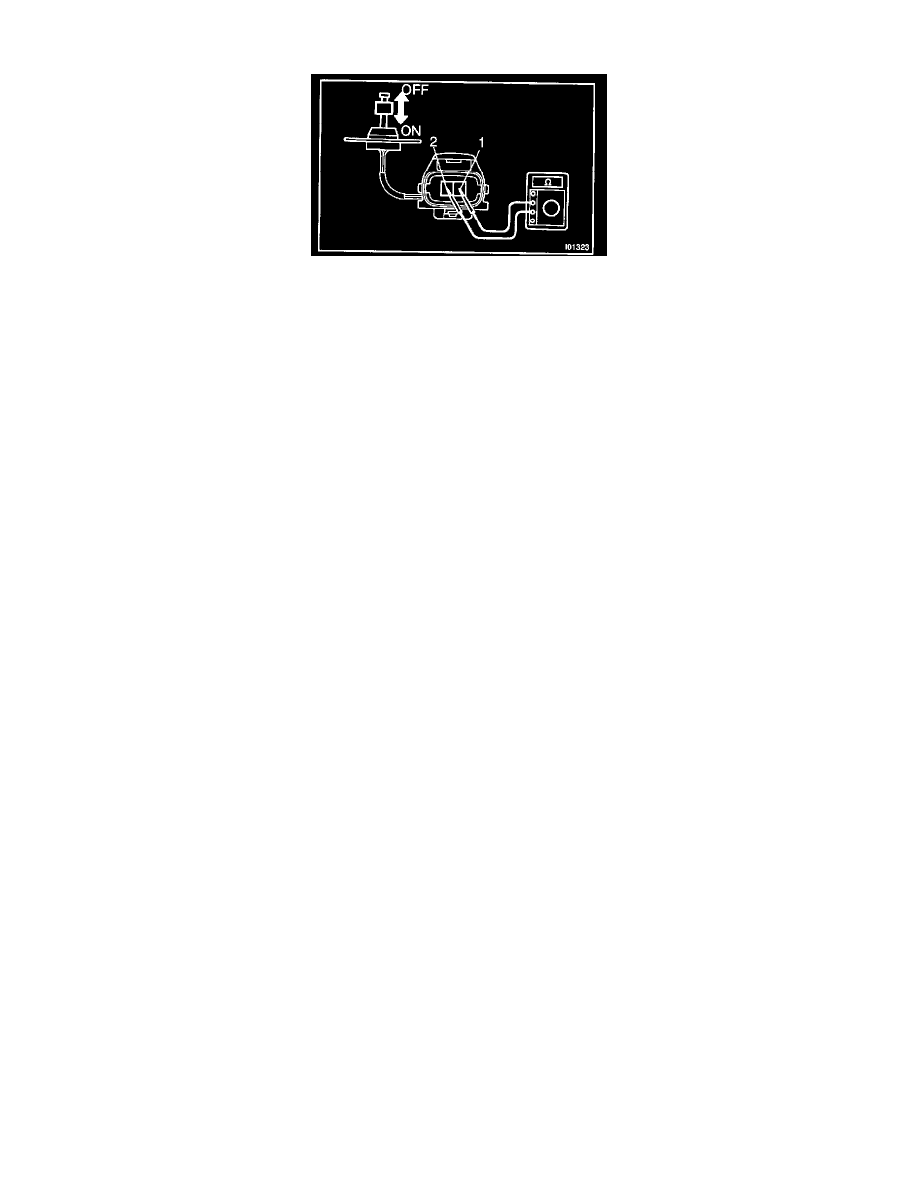

INSPECT WINDOW WASHER LEVEL WARNING SWITCH CONTINUITY
a. Check that there is no continuity between the terminals with the switch OFF (float up).
b. Check that there is continuity between the terminals with the switch ON (float down)
If operation is not as specified, replace the switch or inspect ground point.
