Corolla Sedan L4-96.8 1587cc 1.6L DOHC (4A-FE) (1989)
/Page-41002.png)
5.
Remove the four retaining screws. Remove ignition coil and dust proof packing.

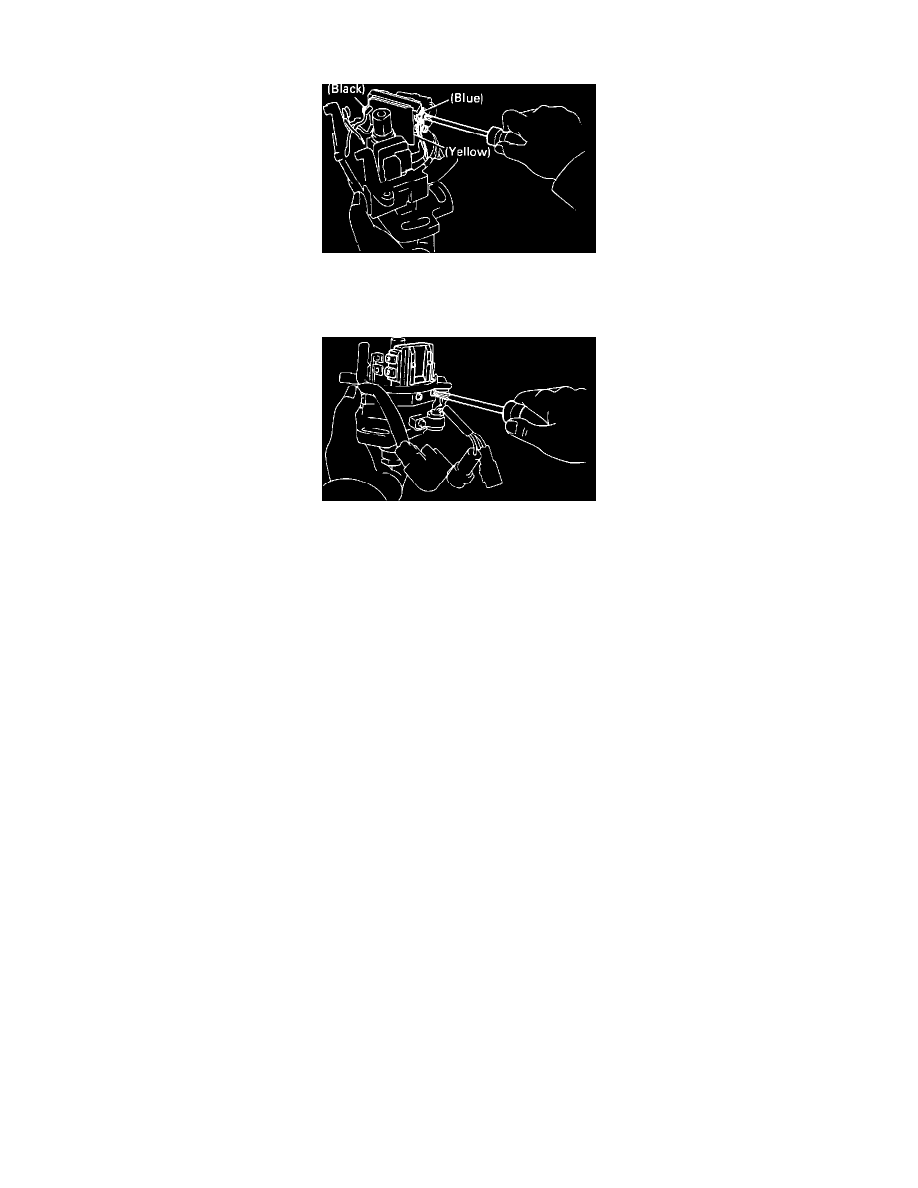

Igniter Wires
6.
Remove the three screws and disconnect the three wires from the terminals of the igniter assembly.
Igniter Assembly Removal And Installation
7.
Remove the two igniter retaining screws, remove the igniter assembly from the distributor housing.
8.
To install reverse removal procedures.
