Corolla Wagon L4-107.5 1762cc 1.8L DOHC (7A-FE) (1993)
/Page-1034001.png)
Air Conditioning Switch: Testing and Inspection
REMOVE
- Carefully remove AC switch by prying it out of the instrument panel with a thin screwdriver.
Tech Tip: Put some scotch tape on the end of your screwdriver before prying out the switch. This will reduce the chance of scratching the dash.
Testing AC Switch
TEST

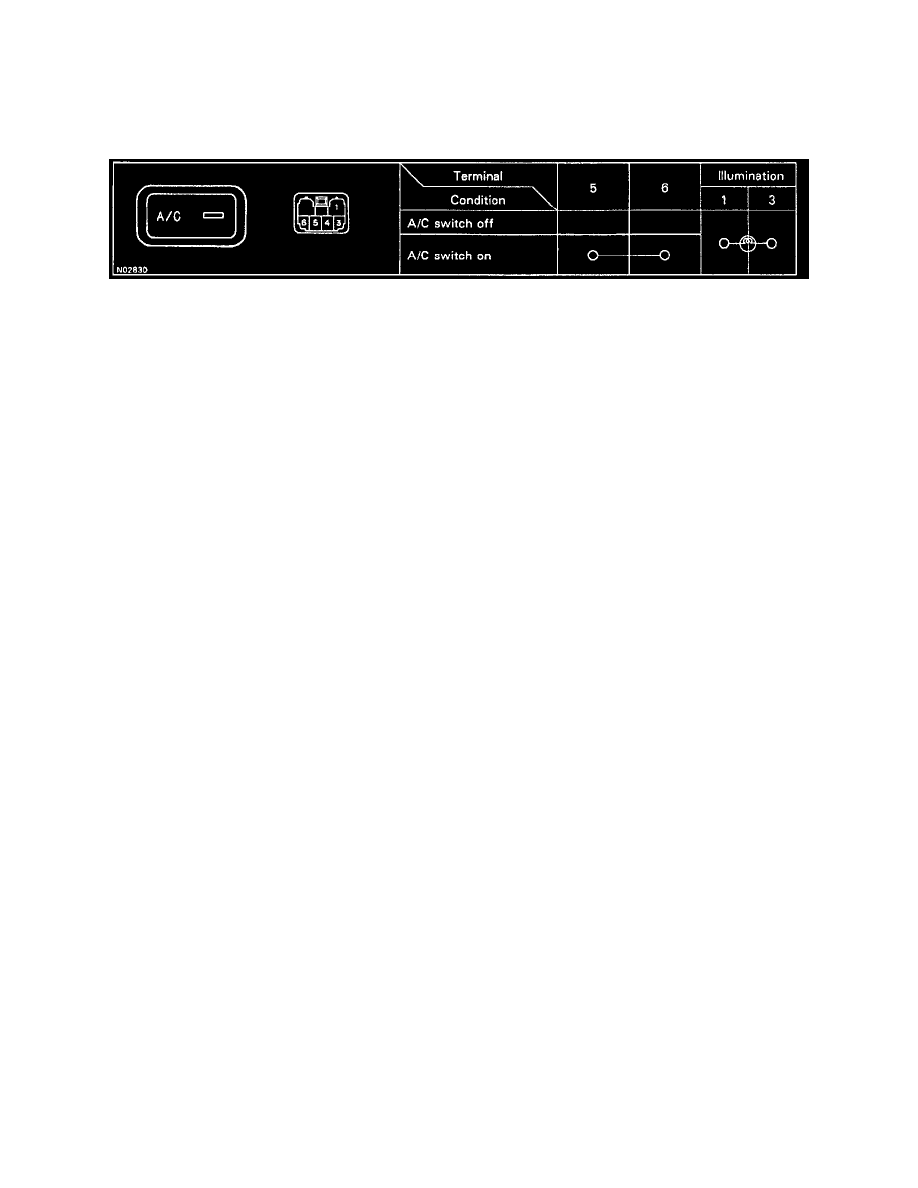

- Check switch function according to the table.
- If the switch fails the test, replace it.
