Corolla Wagon L4-107.5 1762cc 1.8L DOHC (7A-FE) (1993)

  • Powertrain Management
  • Relays and Modules - Powertrain Management
  • Relays and Modules - Computers and Control Systems
  • Engine Control Module
  • Component Information
  • Specifications
  • ECM Resistance Charts

Page 1
background image

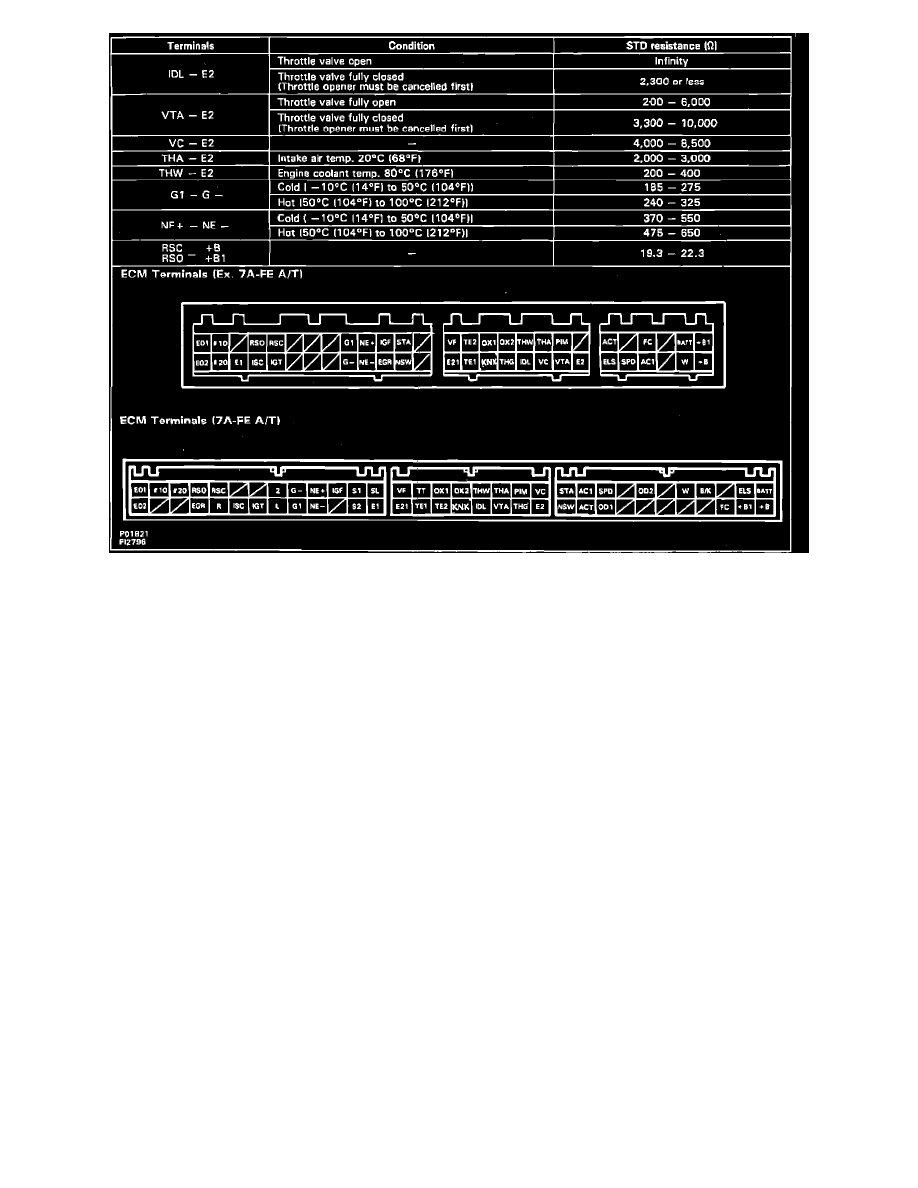

ECM Terminal Resistance
