Blower Motor Relay: Locations

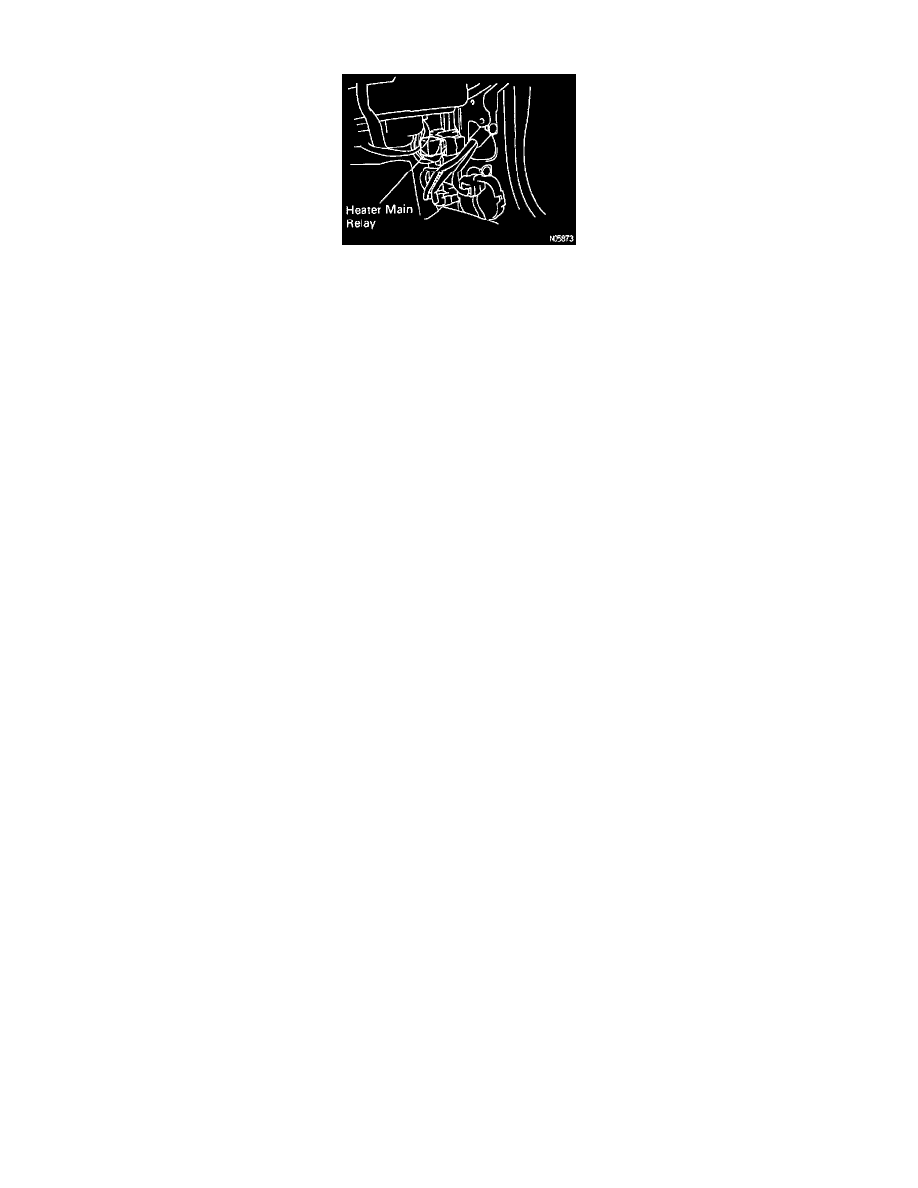

Main Heater (Blower) Relay Location

Located in the passenger's side kick panel.
