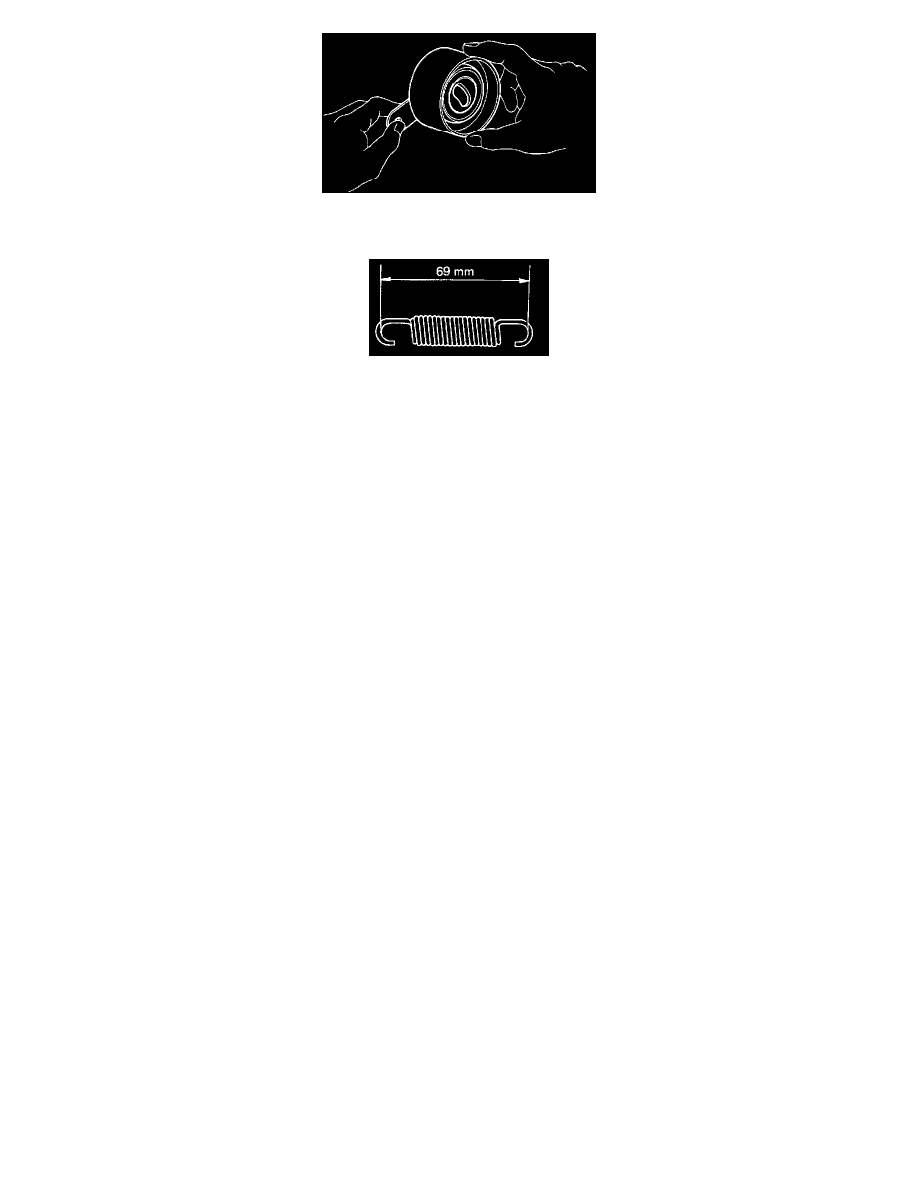

2. Inspect idler pulley

Check that the idler pulley turns smoothly. If necessary, replace the idler pulley.

3. Inspect tension spring

Check the free length of the spring.

Free length: 69 mm (2.72 in.)

If not as specified, replace the spring.
