Echo L4-1.5L (1NZ-FE) (2000)
/Page-1006001.png)
Air Door Actuator / Motor: Testing and Inspection

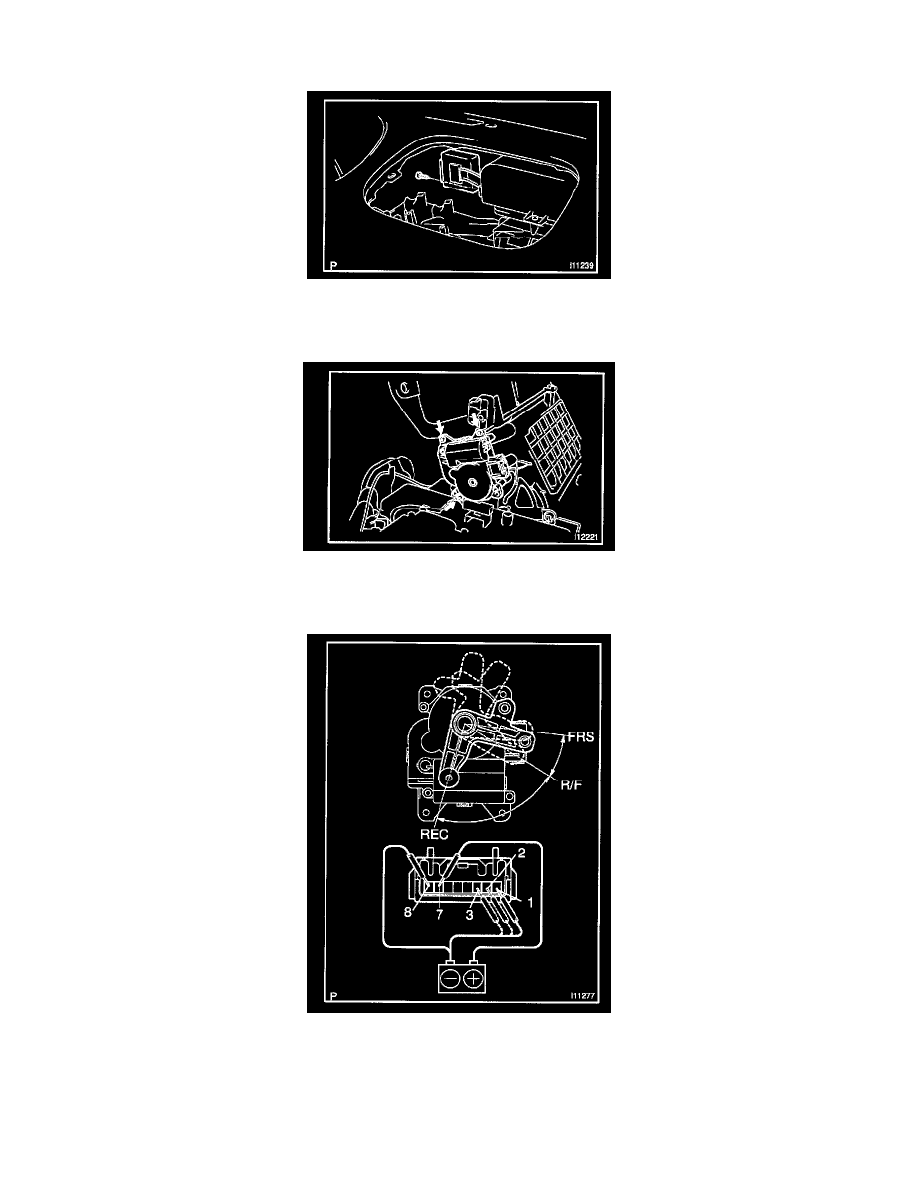

1. REMOVE FRONT PASSENGER AIRBAG.
2. REMOVE A/C AMPLIFIER WITH BRACKET.
a. Disconnect the connector.
b. Remove the screw and A/C amplifier with bracket.
3. REMOVE AIR INLET SERVOMOTOR
a. Disconnect the connector.
b. Remove the 3 screws and servomotor.
4. INSPECT AIR INLET SERVOMOTOR OPERATION
a. Connect the positive (+) lead from the battery to terminal 7 and the negative (-) lead to terminal 8.
