Highlander 2WD L4-2.4L (2AZ-FE) (2001)
/Page-297001.png)

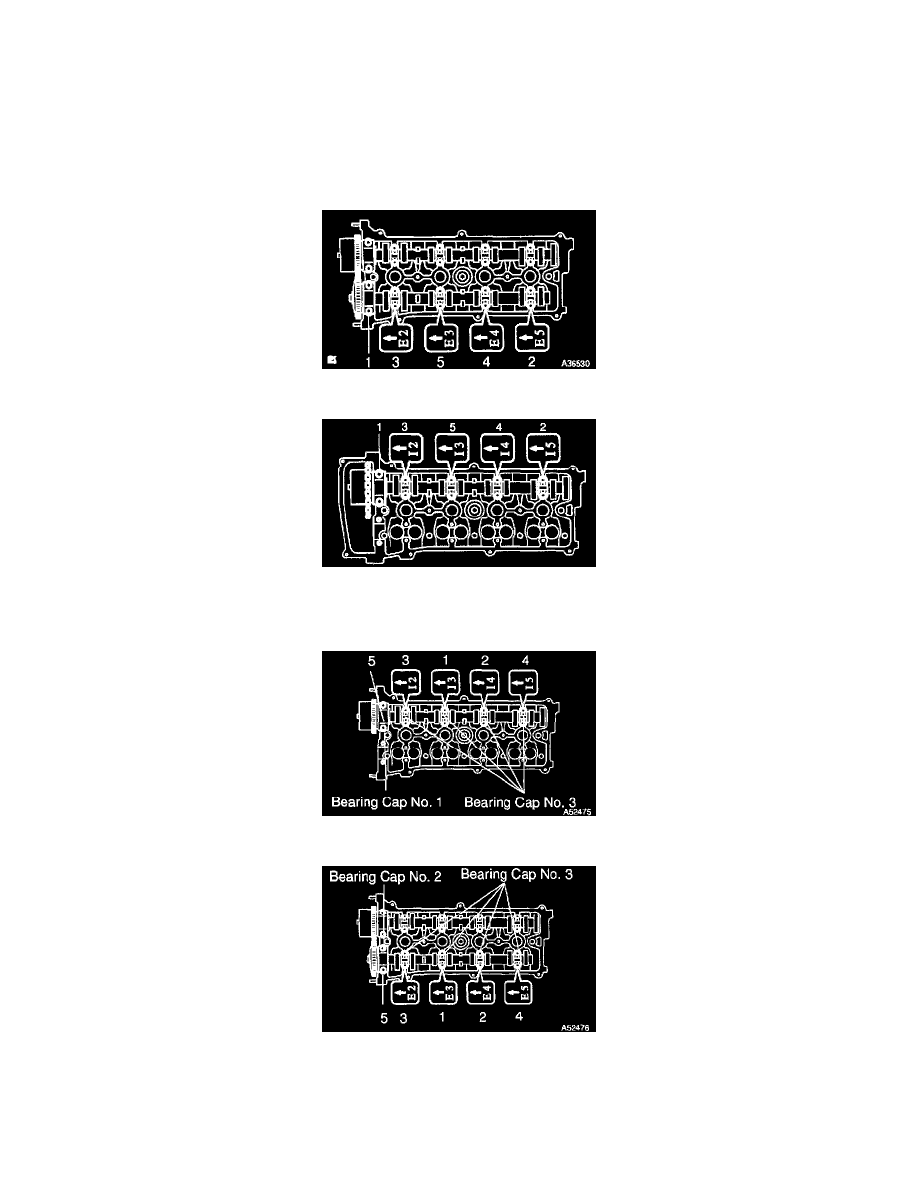

Camshaft Bearing: Specifications
Camshaft Bearing Cap
Tightening Torque
Front Bearing Caps ...................................................................................................................................................................................................... 30 Nm
Bearing Caps (Exc. Front) ............................................................................................................................................................................................. 9 Nm
Removal
No.2 Camshaft
No.1 Camshaft
Installation
No.1 Camshaft
No. 2 Camshaft
