Highlander 2WD V6-3.3L (3MZ-FE) Hybrid (2006)
_hybrid/Page-1473001.png)
Power Door Lock Actuator: Testing and Inspection
Front Door Lock
INSPECTION

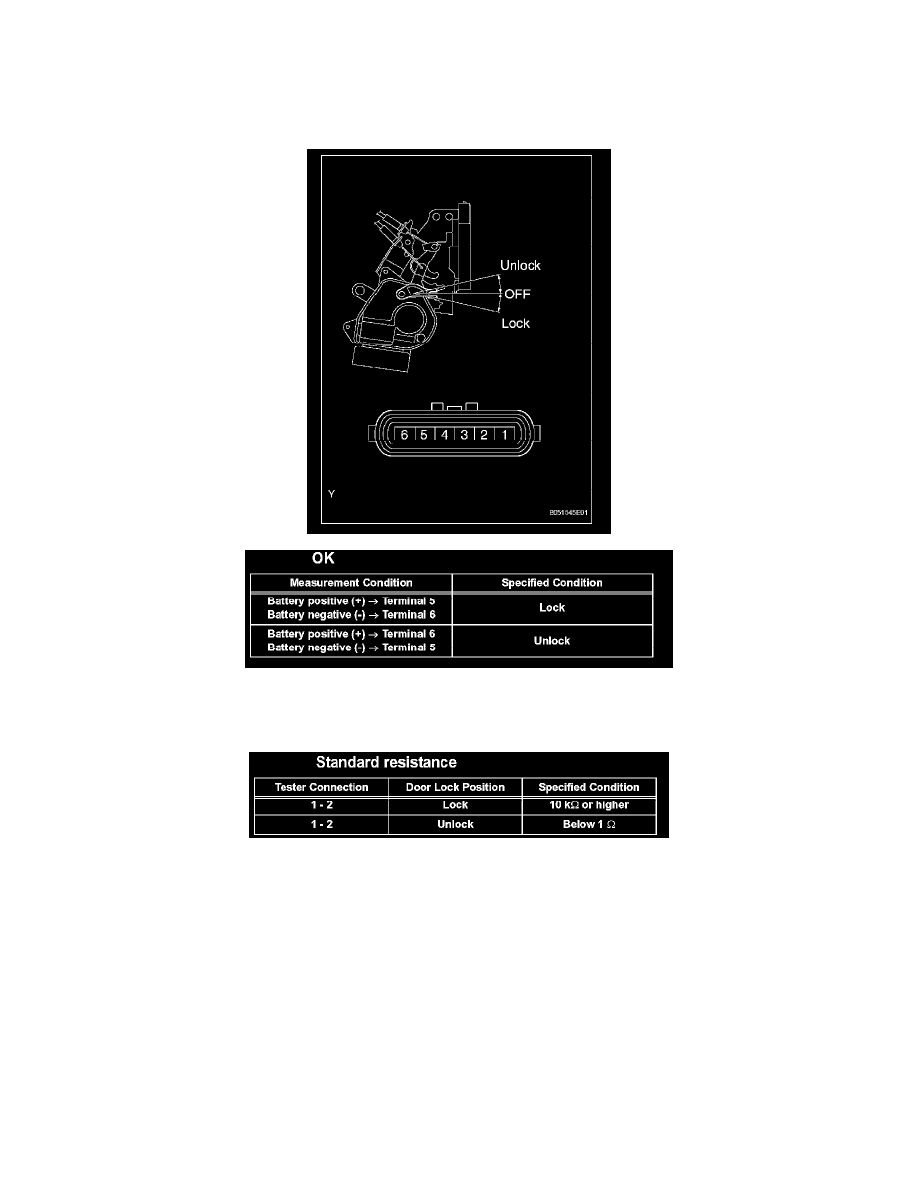

1. INSPECT FRONT DOOR LOCK ASSEMBLY LH
a. Apply battery voltage to the door lock and check operation of the motor.
HINT: If the result is not as specified, replace the door lock assembly.
b. Measure the resistance according to the value(s) in the table.
HINT: If the result is not as specified, replace the door lock assembly.
