Highlander 2WD V6-3.3L (3MZ-FE) Hybrid (2006)
_hybrid/Page-1207001.png)
Blower Motor: Testing and Inspection
Front Blower Motor
INSPECTION
1. INSPECT COOLING UNIT MOTOR SUB-ASSEMBLY W/FAN
a. Remove the cooling unit motor sub-assembly w/fan.
b. Disconnect the connector from the cooling unit motor sub-assembly w/ fan.

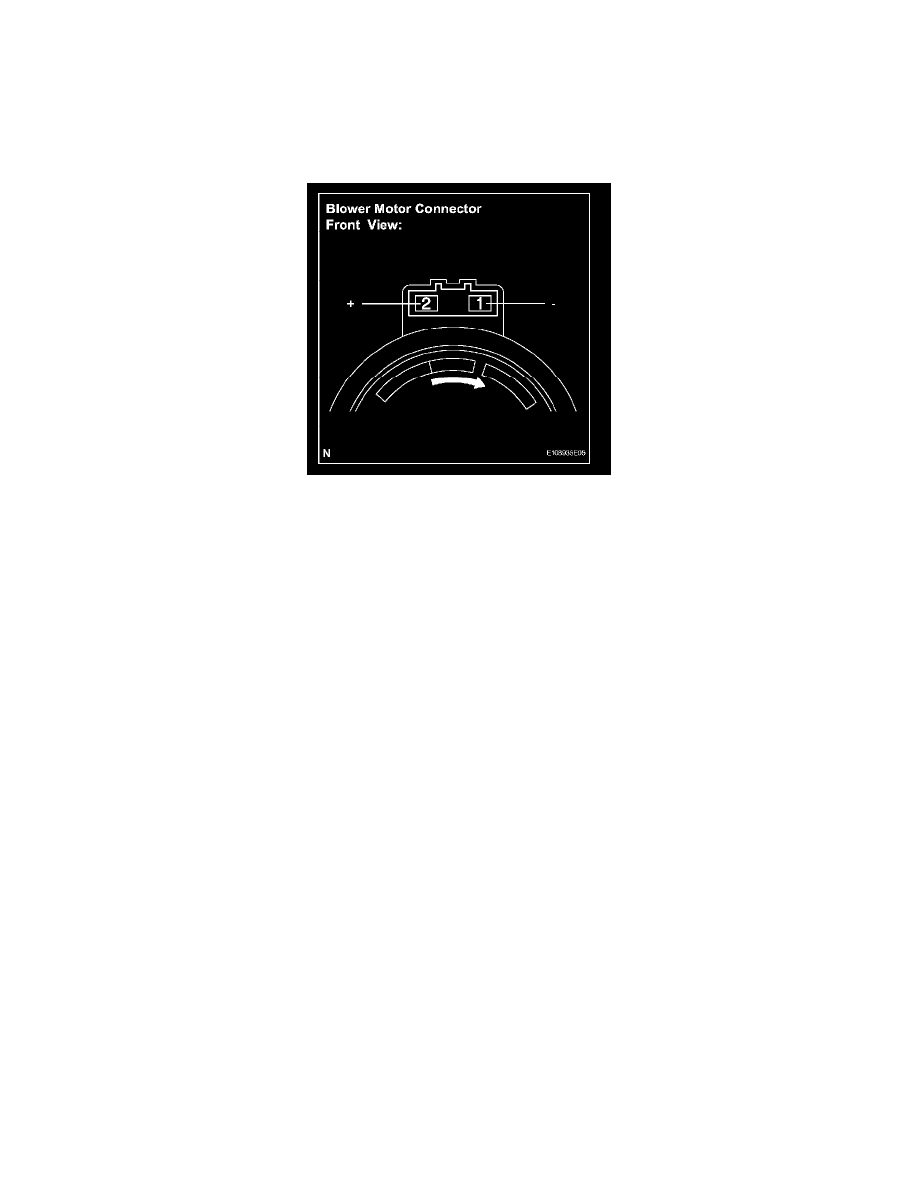

c. Connect the positive (+) lead to terminal 2 of the blower motor connector, and the negative (-) lead to terminal 1.
OK:
Blower motor operates smoothly.
