Highlander 2WD V6-3.3L (3MZ-FE) Hybrid (2006)

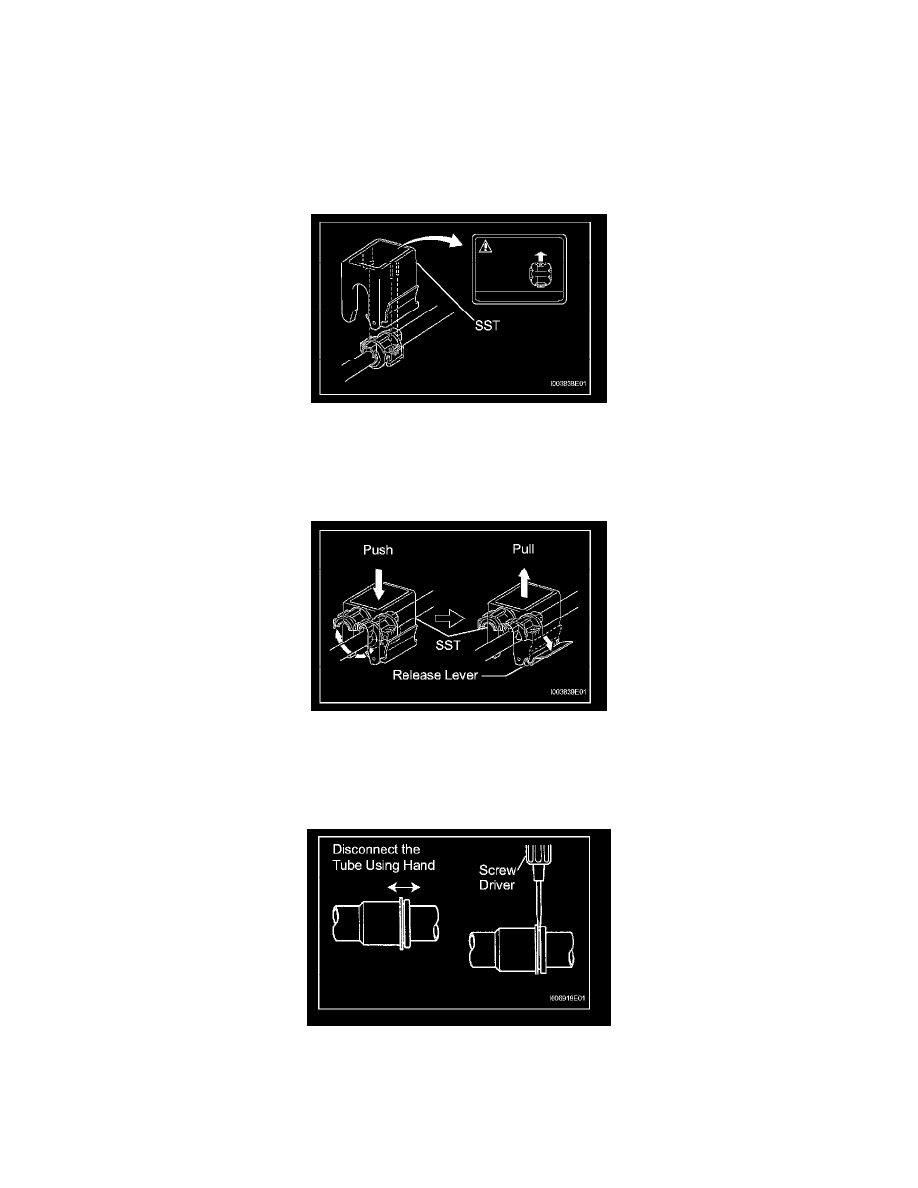

assembly.
INSTALLATION
1. INSTALL AIR CONDITIONING RADIATOR ASSEMBLY
2. INSTALL AIR CONDITIONER UNIT ASSEMBLY
a. Install the air conditioner unit assembly with the 2 bolts and 2 nuts.
Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)
b. Connect the connectors connecting the wiring air indicator No.2 harness and vehicle harness.
c. install the connector and clamp.
3. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY
a. Install the instrument panel reinforcement assembly with the 5 bolts and 4 nuts.
Torque: 29 N.m (300 kgf.cm, 21 ft.lbf)
4. INSTALL INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
