Highlander 2WD V6-3.3L (3MZ-FE) Hybrid (2006)
_hybrid/Page-691001.png)
Information Bus: Reading and Clearing Diagnostic Trouble Codes
With Manufacturer's Scan Tool
CHECK DTC

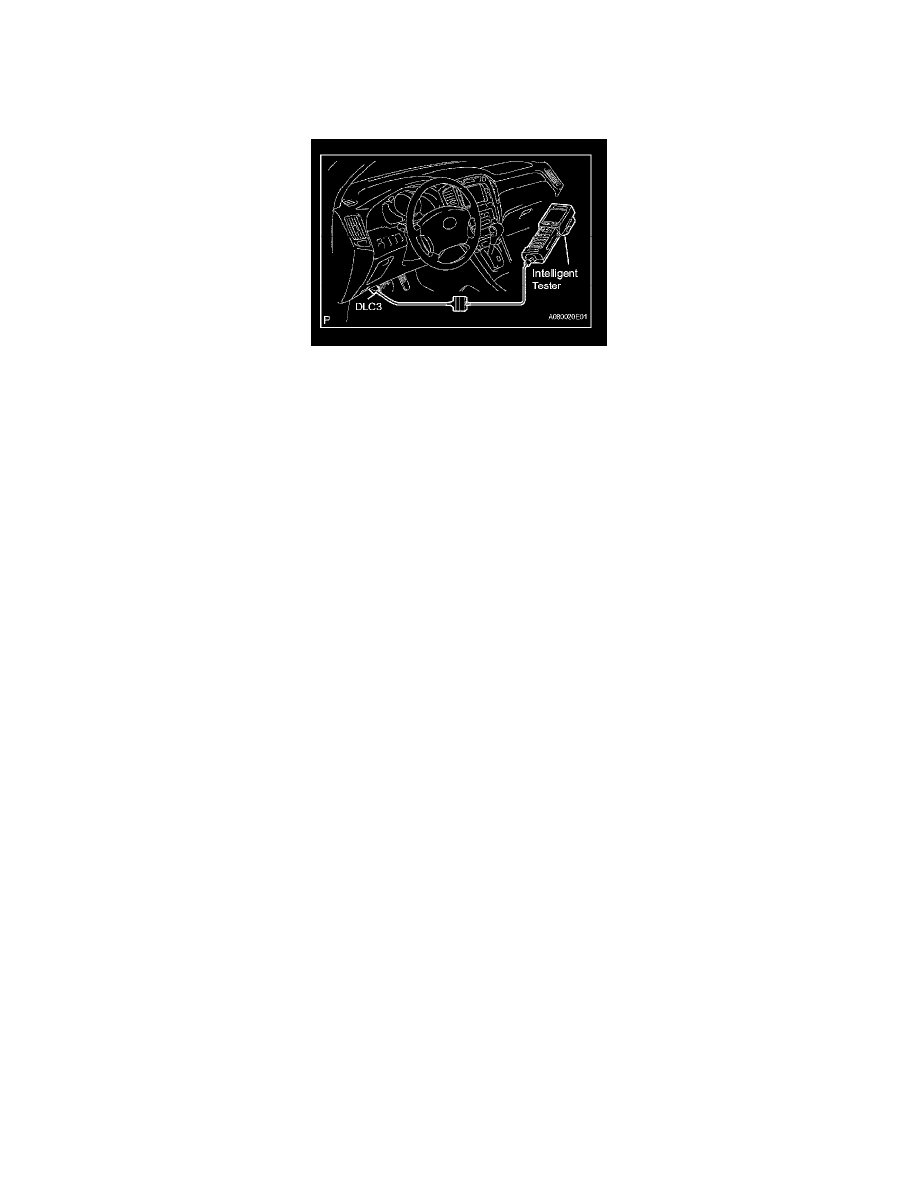

a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch on.
c. Read DTCs on the tester screen.
HINT: Refer to the intelligent tester operator's manual for further details.
Without Scan Tool
TOYOTA does not provide a procedure for Reading Trouble Codes Without Scan Tool.
With Manufacturer's Scan Tool
CLEAR DTC
a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch on.
c. Clear the DTCs by following the prompts on the tester screen.
HINT: Refer to the intelligent tester operator's manual for further details.
Without Scan Tool
TOYOTA does not provide a procedure for Clearing Trouble Codes Without Scan Tool.
