Highlander 4WD V6-3.3L (3MZ-FE) (2004)
/Page-1087006.png)
29. INSTALL VANE PUMP CAM RING

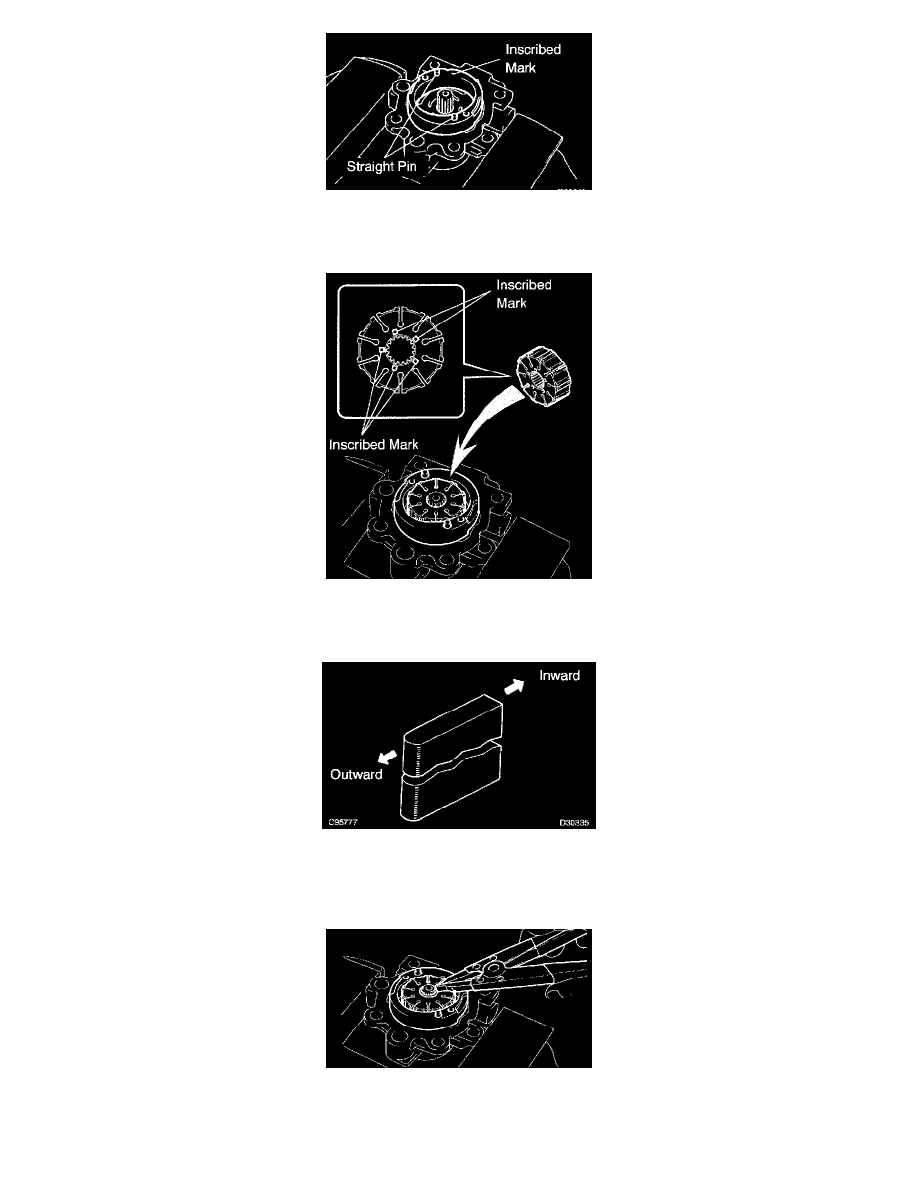

a. Align the holes of the vane pump cam ring with the 2 straight pins, and install the vane pump cam ring with the inscribed mark facing upward.
30. INSTALL VANE PUMP ROTOR
a. Install the vane pump rotor with the inscribed mark facing downward.
NOTICE: Make sure that the vane pump rotor is installed correctly.
b. Coat all 10 vane pump plates with power steering fluid.
c. Install the vane pump plates with the round end facing outward.
NOTICE: Make sure that the vane pump plates are installed correctly.
31. INSTALL VANE PUMP SHAFT SNAP RING
a. Using a snap ring expander, install a new vane pump shaft snap ring onto the vane pump shaft.
32. INSTALL VANE PUMP SIDE PLATE REAR
