Landcruiser V8-4.7L (2UZ-FE) (2000)
/Page-1353001.png)
Antenna Motor: Testing and Inspection
INSPECTION
Auto antenna models:

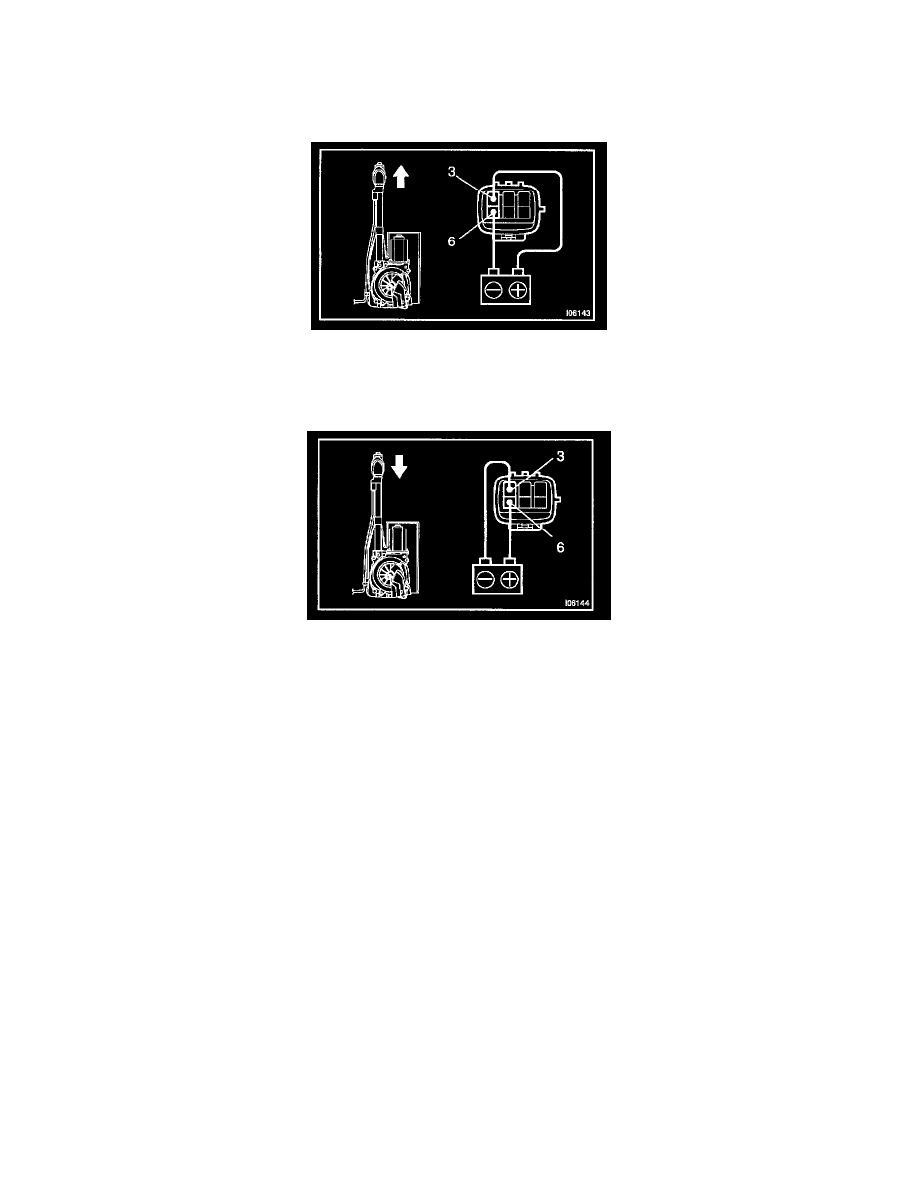

INSPECT ANTENNA MOTOR
a. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 6.
b. Check that the motor turns (moves upward).
NOTE: These tests must be done quickly (within 3-5 seconds) to prevent the coil from burning out.
c. Then, reverse the polarity, check that the motor turns the opposite way (moves downward).
NOTE: These tests must be done quickly (within 3-5 seconds) to prevent the coil from burning out.
