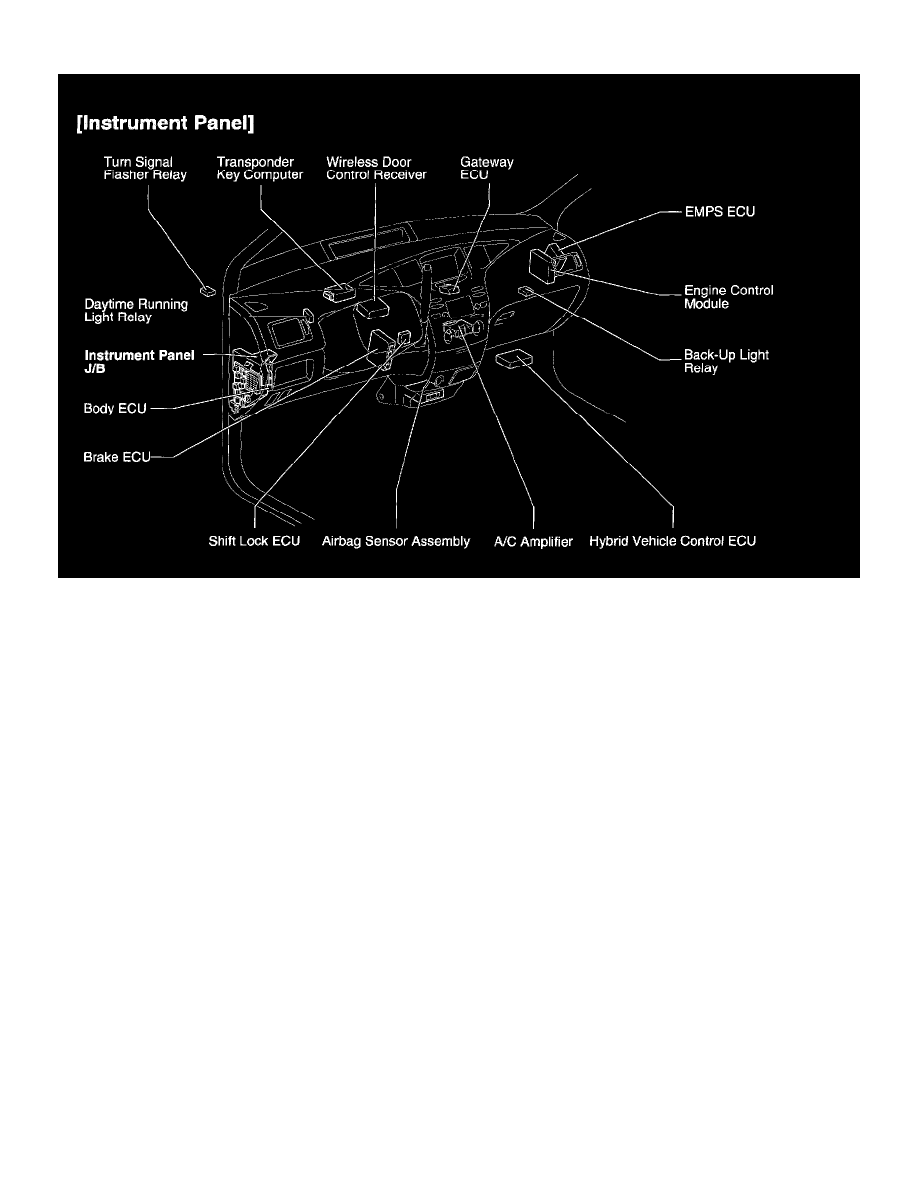

Body Control Module: Locations

Instrument Panel

  • Powertrain Management
  • Relays and Modules - Powertrain Management
  • Relays and Modules - Computers and Control Systems
  • Body Control Module
  • Component Information
  • Locations
