Prius L4-1.5L (1NZ-FXE) (Hybrid) (2003)
_(hybrid)/Page-555001.png)

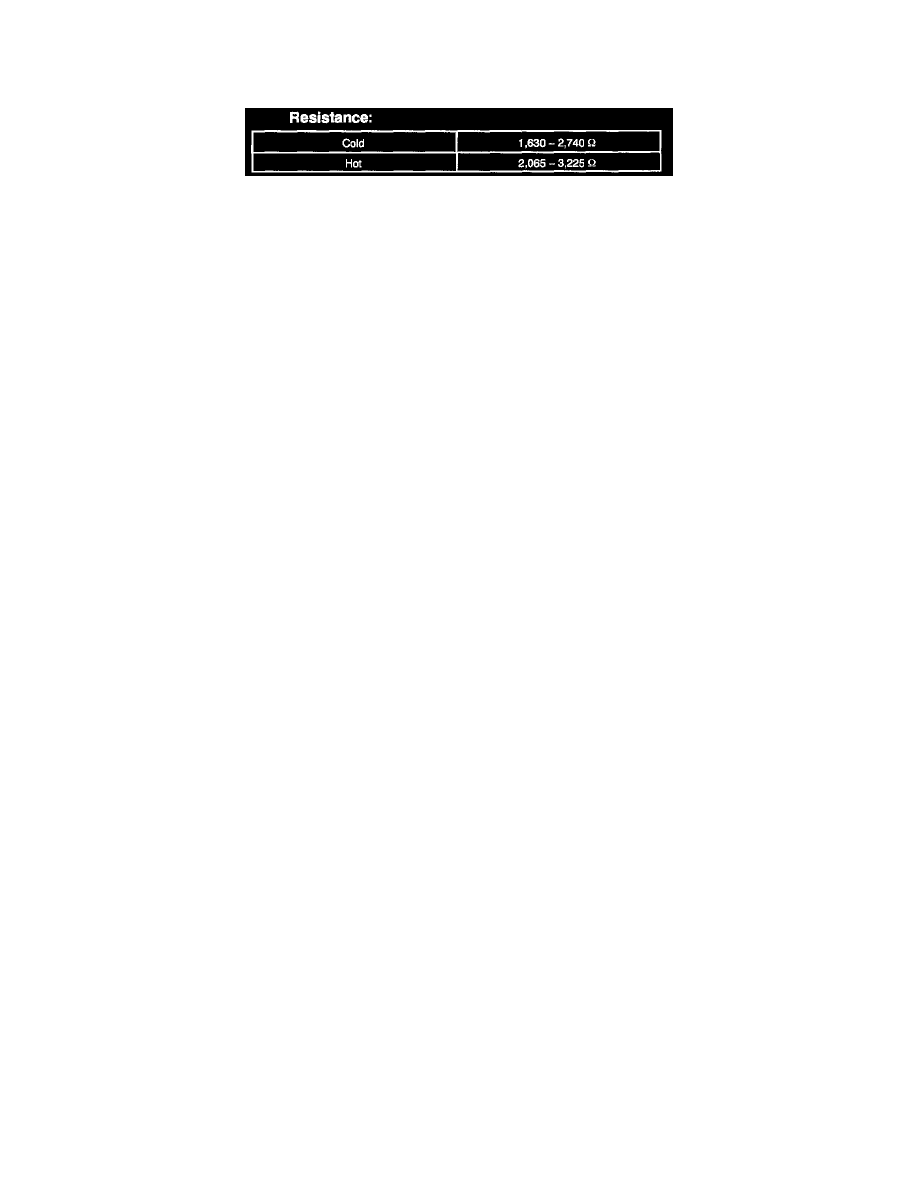

Camshaft Position Sensor: Electrical Specifications
CAMSHAFT POSITION SENSOR
CAMSHAFT POSITION SENSOR
NOTE: "Cold" and "Hot" on the table express the temperature of the coils themselves."Cold" is from -10 °C (14 °F) to 50 °C (122 °F) and "Hot" is
from 50 °C (122 °F) to 100 °C (212 °F).
