Body Control Module: Locations
CAN Communication System

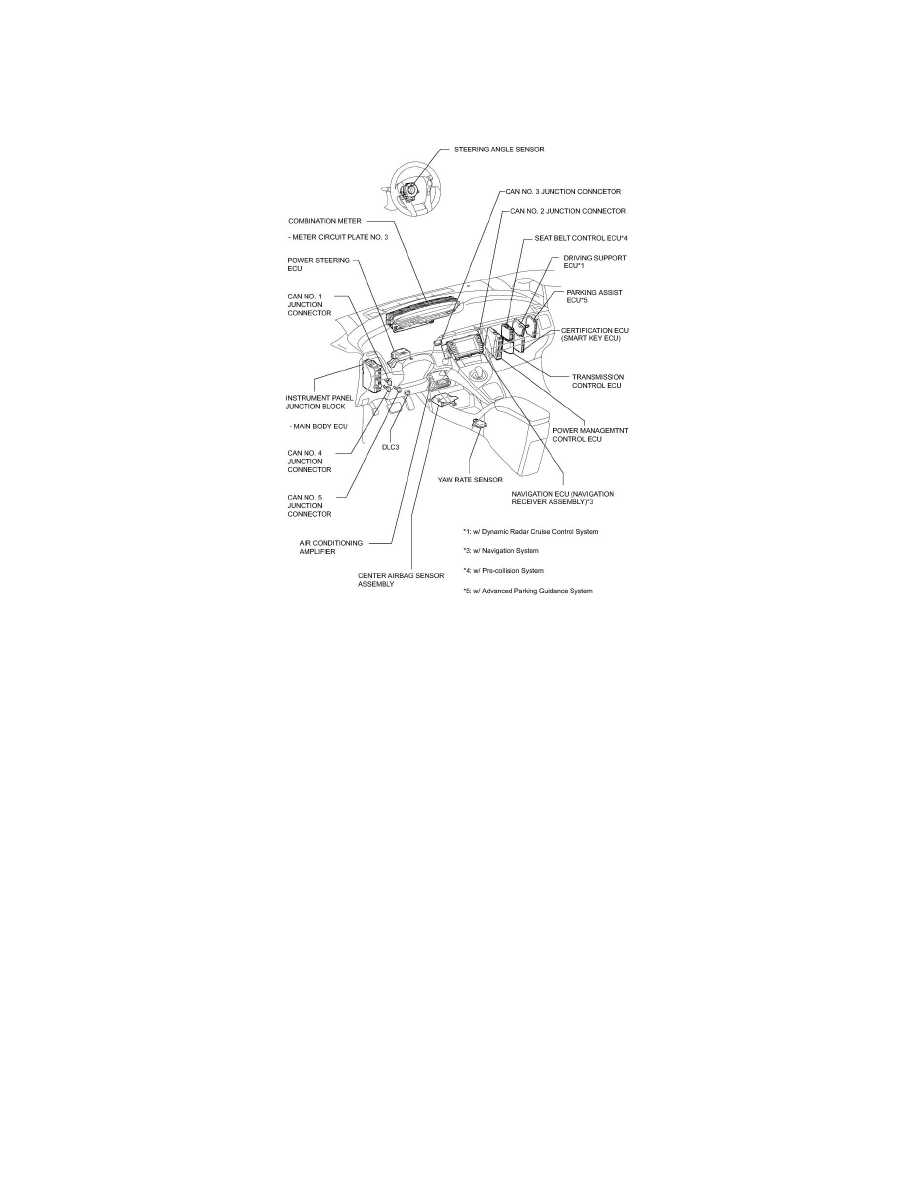

NETWORKING: CAN COMMUNICATION SYSTEM: PARTS LOCATION
