Backup Lamp Switch: Testing and Inspection

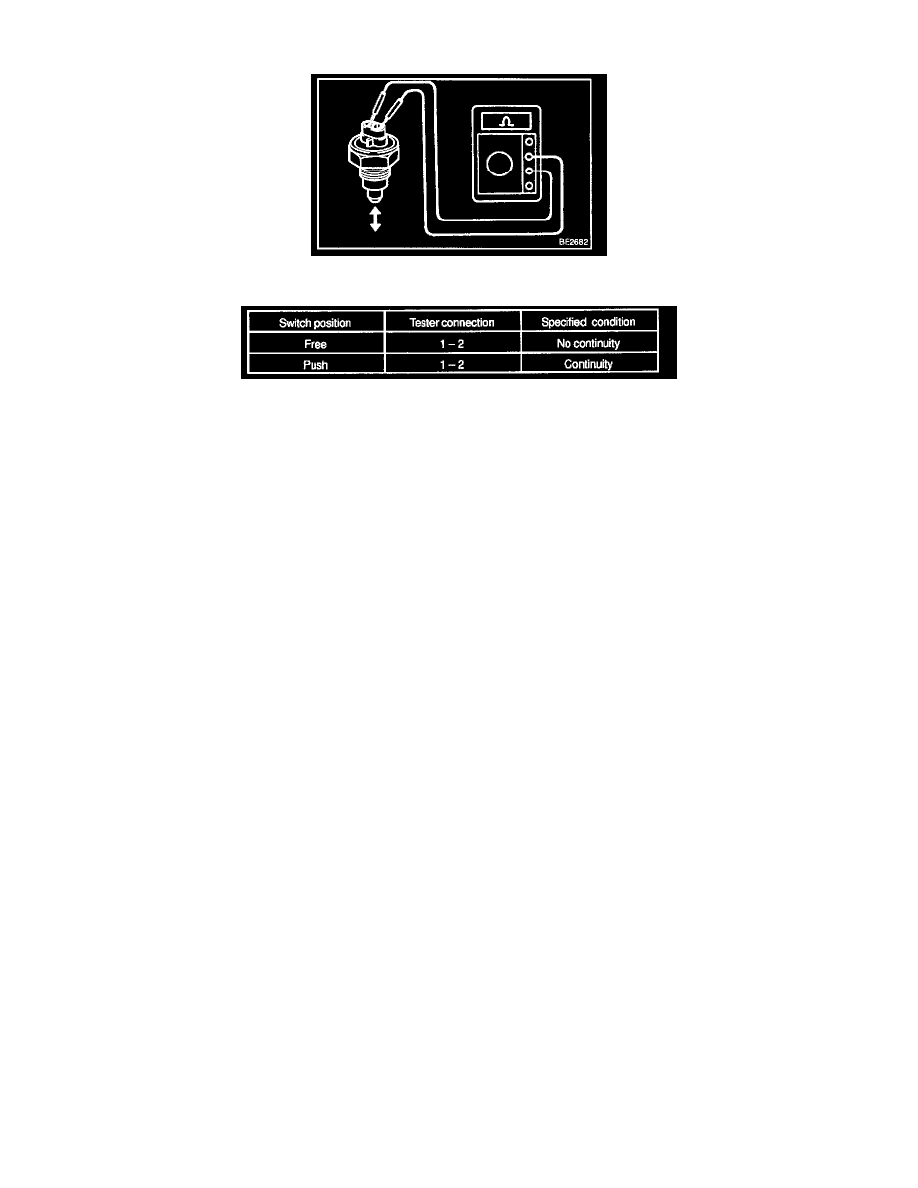

INSPECT BACK-UP LIGHT SWITCH CONTINUITY

If continuity is not as specified, replace the switch.
