RAV4 2-Door 4WD L4-2.0L (3S-FE) (1997)

Page 5
background image

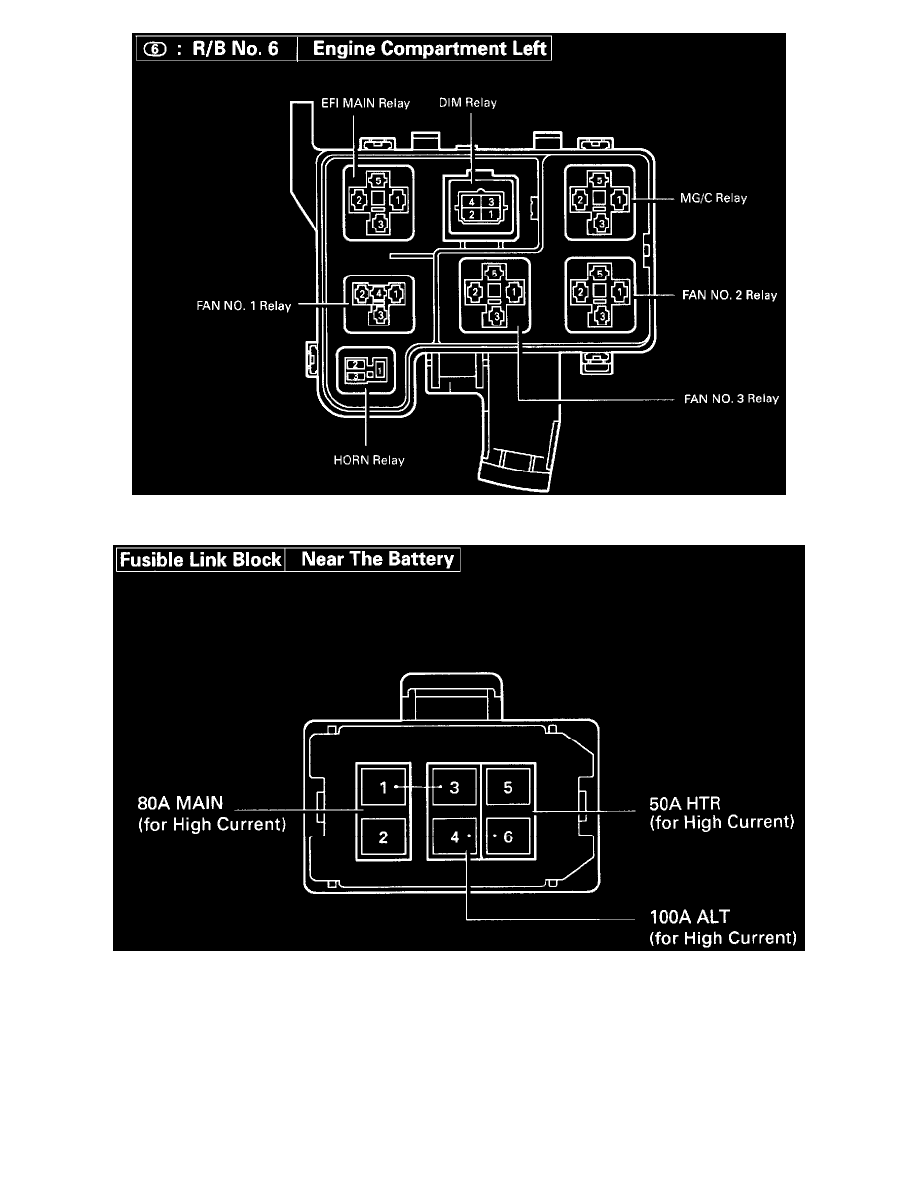

Locations-R/B No.6 Engine Compartment Left (Fig 27)

Locations-Fusible Link Block, Near The Battery (Fig 27)
