Starter Relay: Testing and Inspection
STARTER RELAY (Marking: "ST") INSPECTION
Starter Relay
1. REMOVE STARTER RELAY

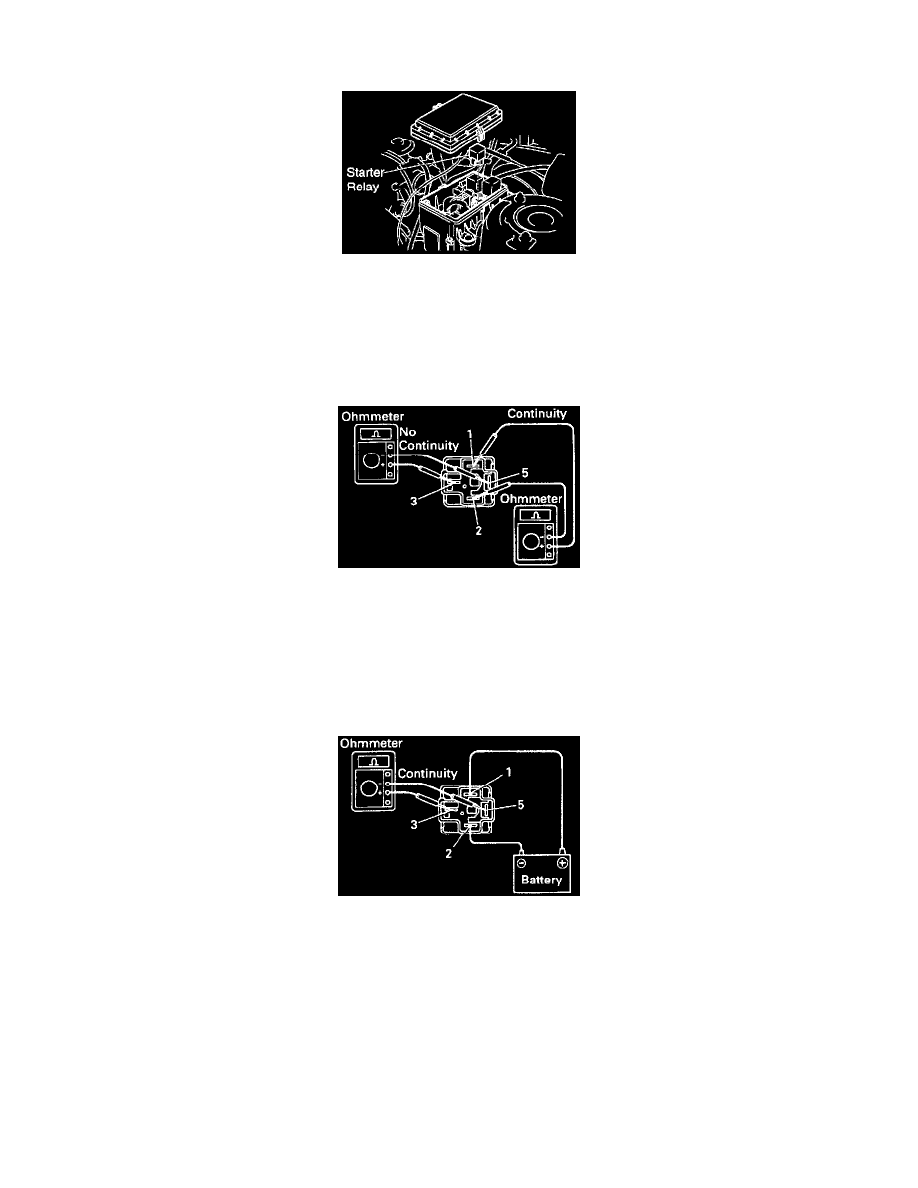

LOCATION: In the engine compartment relay box. Remove the relay box cover and starter relay.
2. INSPECT STARTER RELAY
a. Inspect relay continuity
-
Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.
-
Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.
b. Inspect relay operation
-
Apply battery positive voltage across terminals 1 and 2.
-
Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.
3. REINSTALL STARTER RELAY
