RAV4 2WD L4-2.5L (2AR-FE) (2009)
Spark Plug: Service and Repair
Installation
2AR-FE IGNITION: IGNITION COIL AND SPARK PLUG: INSTALLATION
INSTALLATION
1. INSTALL SPARK PLUG

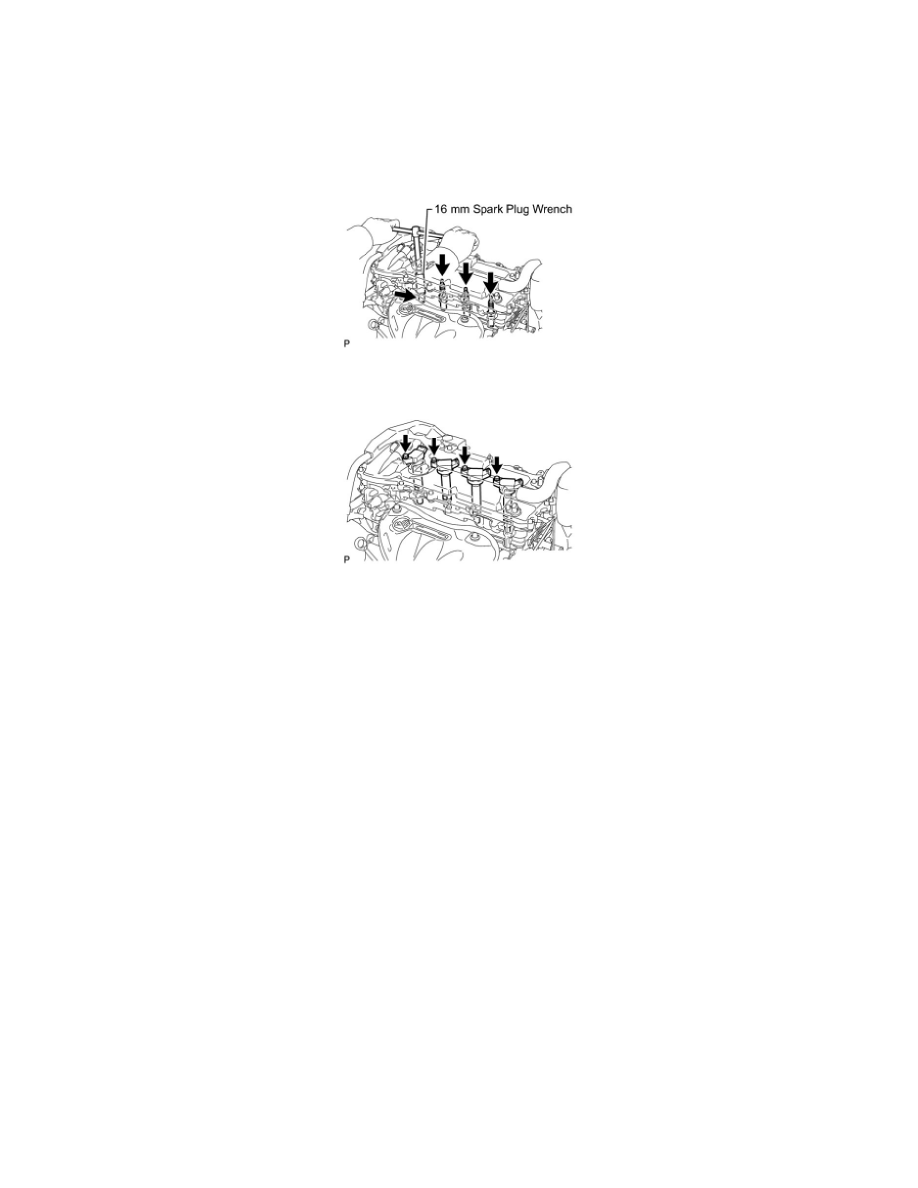

(a) Using a 16 mm spark plug wrench, install the 4 spark plugs.
Torque: 25 Nm (254 kgf-cm, 18 ft-lbf)
2. INSTALL IGNITION COIL ASSEMBLY
(a) Install the 4 ignition coils with the 4 bolts.
Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)
(b) Connect the 4 ignition coil connectors.
3. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY See: Powertrain Management/Fuel Delivery and Air Induction/Throttle Body/Service and
Repair/Installation
