RAV4 2WD V6-3.5L (2GR-FE) (2006)
/Page-407001.png)
Refrigerant: Testing and Inspection
REFRIGERANT
ON-VEHICLE INSPECTION
1. INSPECT REFRIGERANT PRESSURE WITH MANIFOLD GAUGE SET
a. This method uses a manifold gauge set to locate problem areas. Read the manifold gauge pressure when these conditions are established. Test
conditions:
-
Temperature at the air inlet is 30 to 35 degrees C (86 to 95 degrees F).
-
Engine is running at 1,500 rpm.
-
All doors are fully open.
-
Blower speed control switch is at HI.
-
A/C switch is ON.

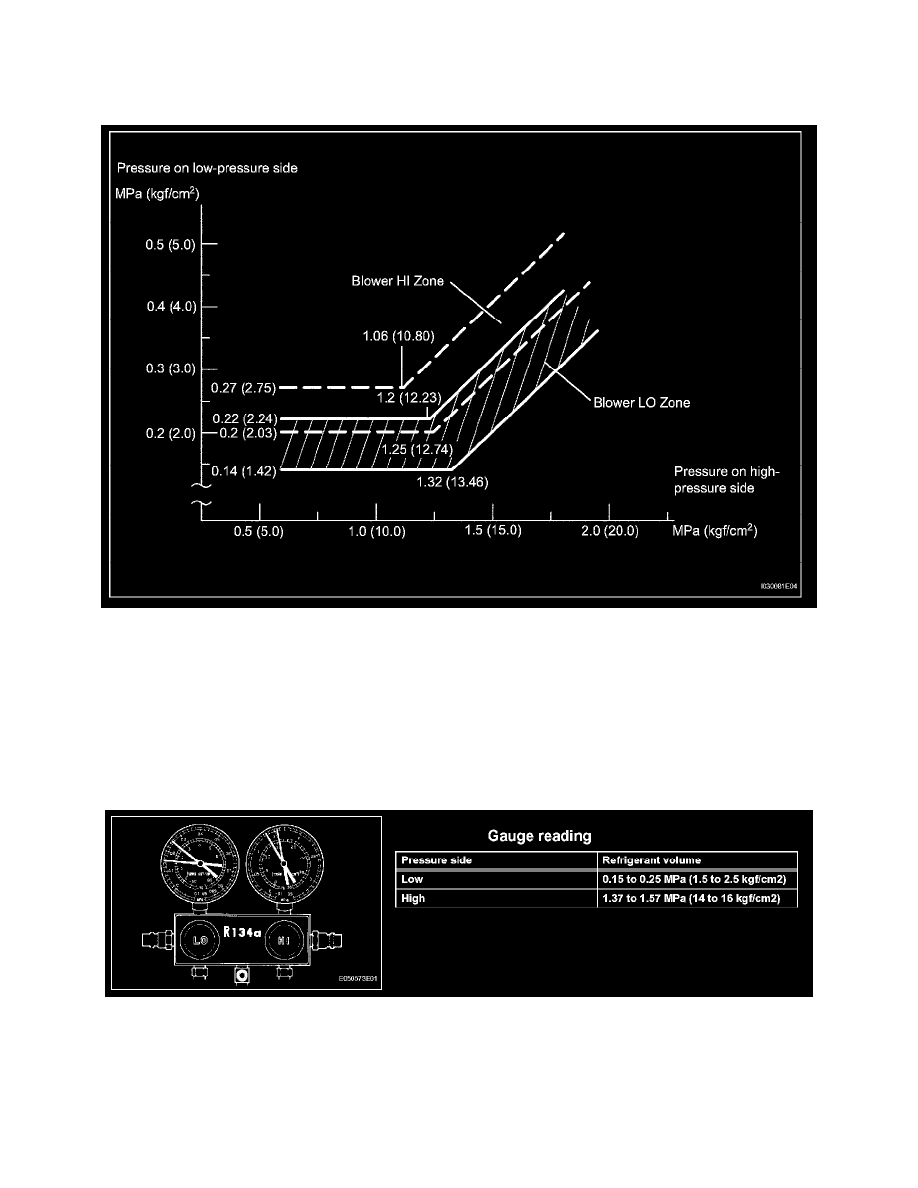

Gauge readings (Reference).
1. Normally functioning refrigeration system
