RAV4 4WD L4-2.0L (1AZ-FE) (2001)

Page 1
background image

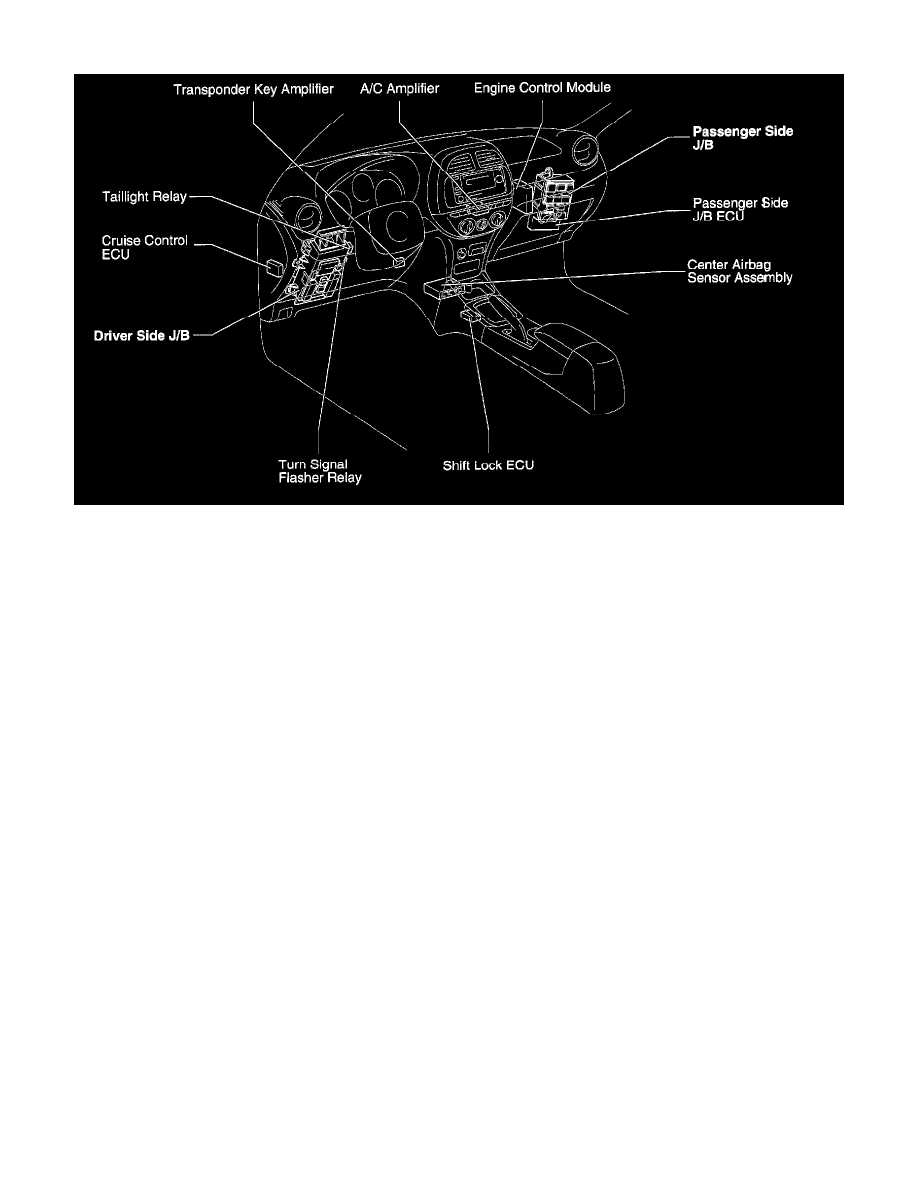

Engine Control Module: Locations

Instrument Panel
