Diagram Information and Instructions|Page 2654 > < Diagram Information and Instructions|Page 2652

RAV4 4WD L4-2.0L (3S-FE) (1996)

Page 4
background image

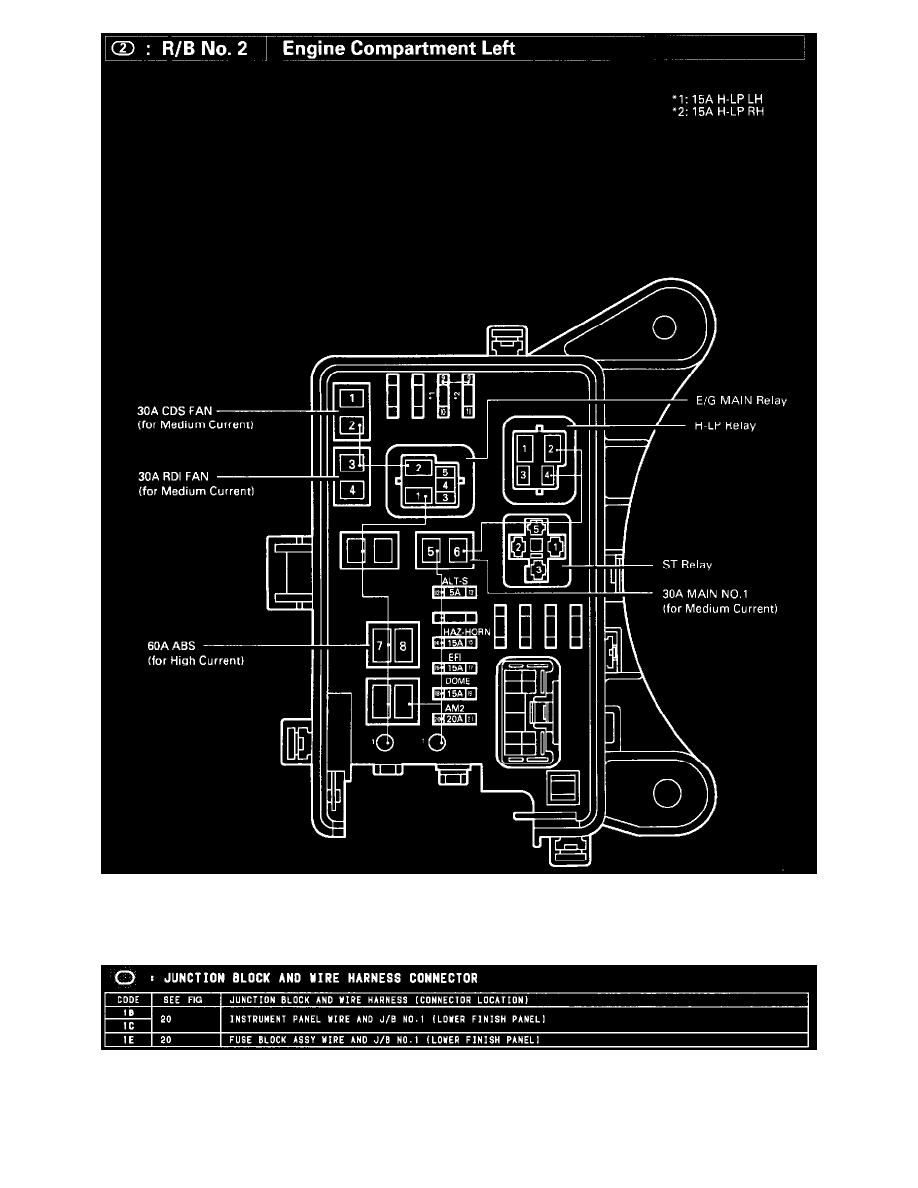

Locations-R/B No.2 Engine Compartment Left (Fig 22)

Junction Block and Wire Harness Connector

Junction Block And Wire Harness Connector
