RAV4 4WD L4-2.4L (2AZ-FE) (2007)
/Page-1576001.png)
Power Door Lock Actuator: Testing and Inspection
Front Door Lock
INSPECTION

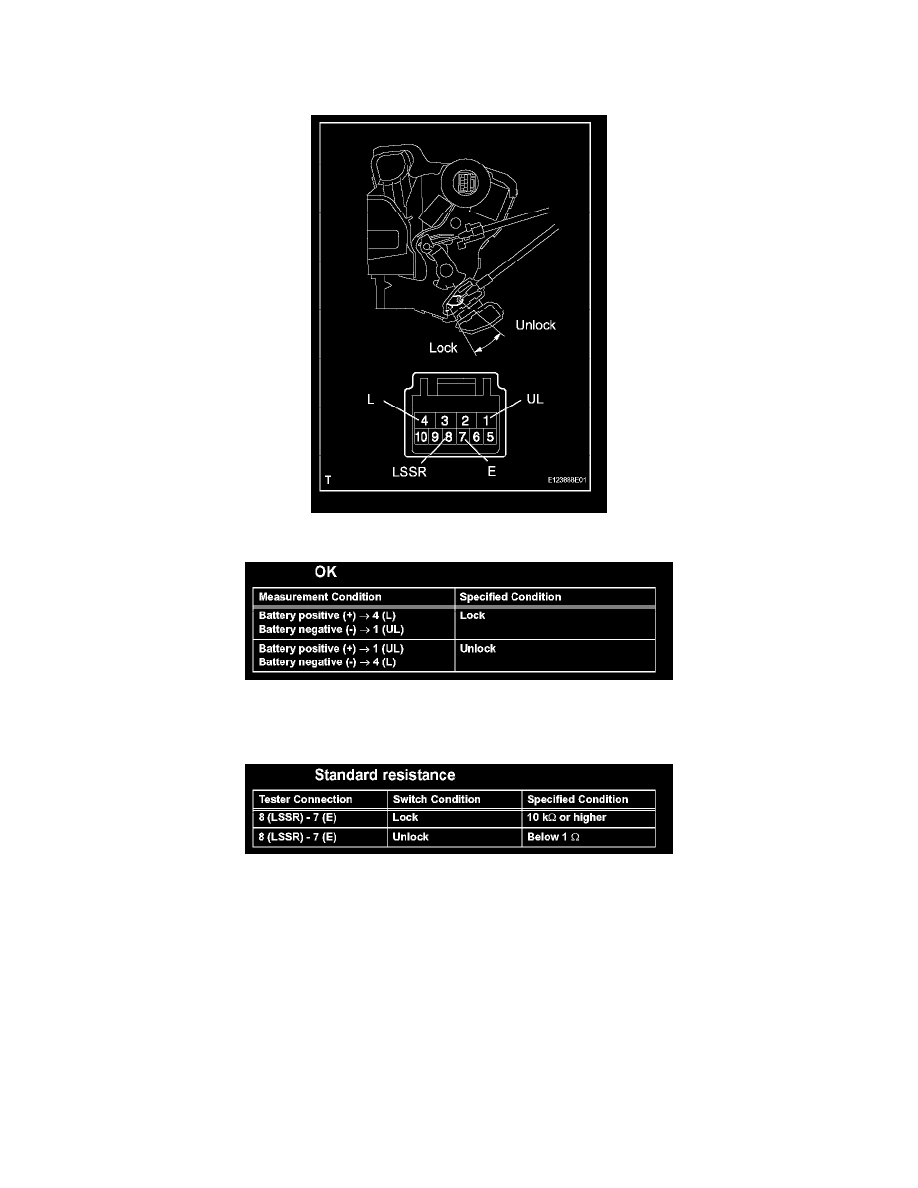

1. INSPECT FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH
a. Apply the battery voltage to the motor terminals and check the operation of the door lock motor.
If the result is not as specified, replace the door lock assembly.
b. Measure the resistance of the door lock position switch.
If the result is not as specified, replace the door lock assembly.
