RAV4 4WD L4-2.4L (2AZ-FE) (2007)
/Page-1707001.png)
Dome Lamp: Testing and Inspection
INSPECTION
1. INSPECT ROOM LIGHT

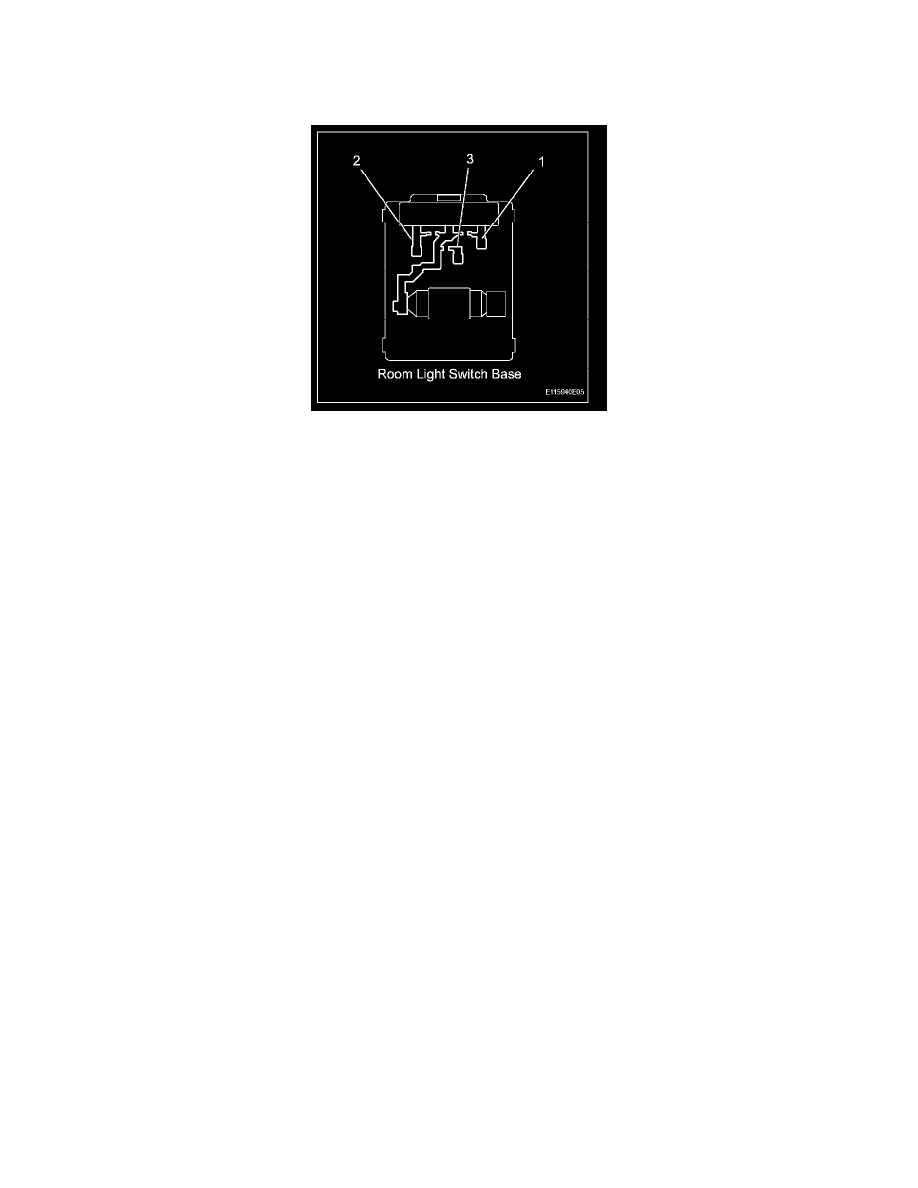

a. Connect the battery's positive (+) lead to terminal 1 and the negative (-) lead to terminal 2, and then check that the light comes on when the
switch is in the DOOR position.
OK: Light comes on.
If the result is not as specified, replace the light assembly.
b. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 3, then check that the light comes on when the
switch is in the ON position.
OK: Light comes on.
If the result is not as specified, replace the light assembly.
