RAV4 4WD L4-2.4L (2AZ-FE) (2007)
/Page-355001.png)
Refrigerant: Testing and Inspection
ON-VEHICLE INSPECTION
1. INSPECT REFRIGERANT PRESSURE WITH MANIFOLD GAUGE SET
a. This method uses a manifold gauge set to locate problem areas. Read the manifold gauge pressure when these conditions are established. Test
conditions:
-
Temperature at the air inlet is 30 to 35°C (86 to 95°F).
-
Engine is running at 1,500 rpm.
-
All doors are fully open.
-
Blower speed control switch is at HI.
-
A/C switch is ON. Gauge readings (Reference).

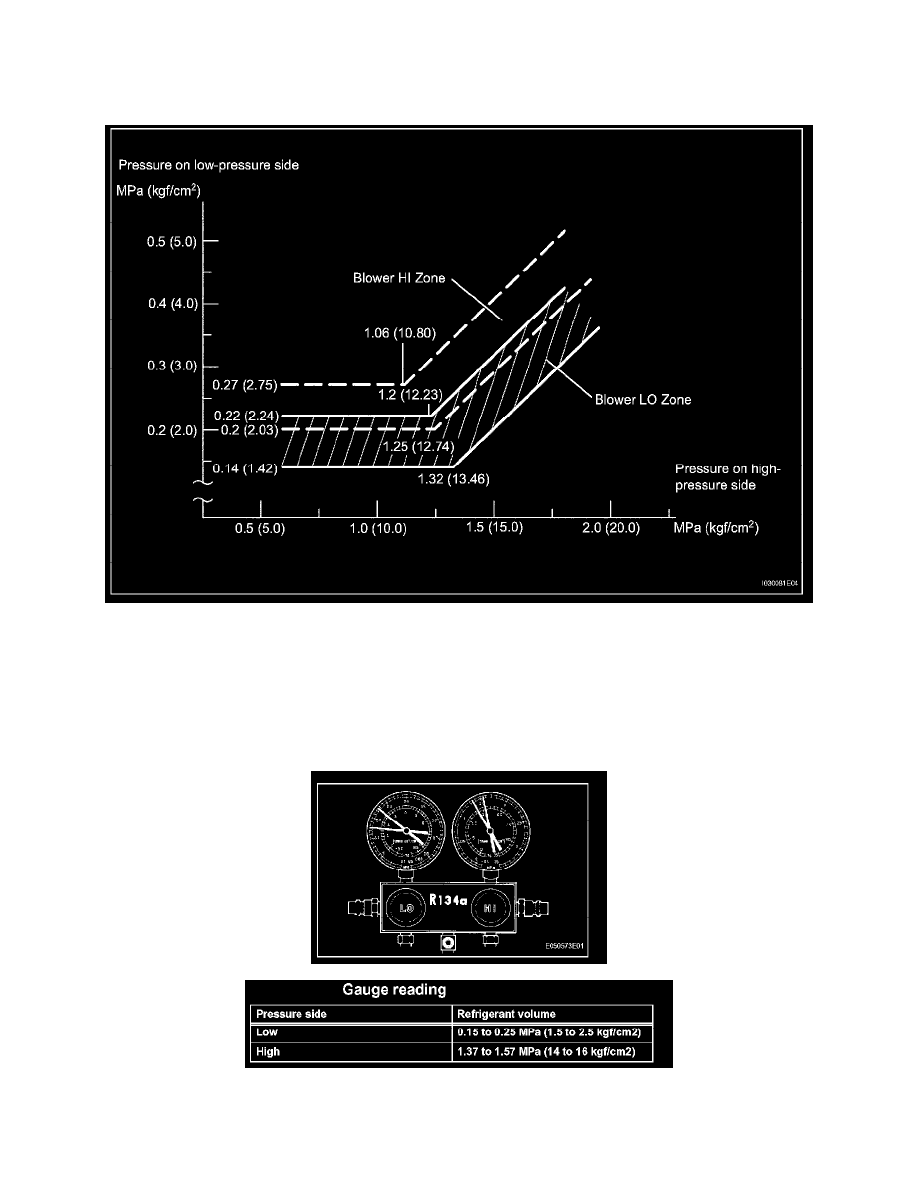

1. Normally functioning refrigeration system Gauge reading
