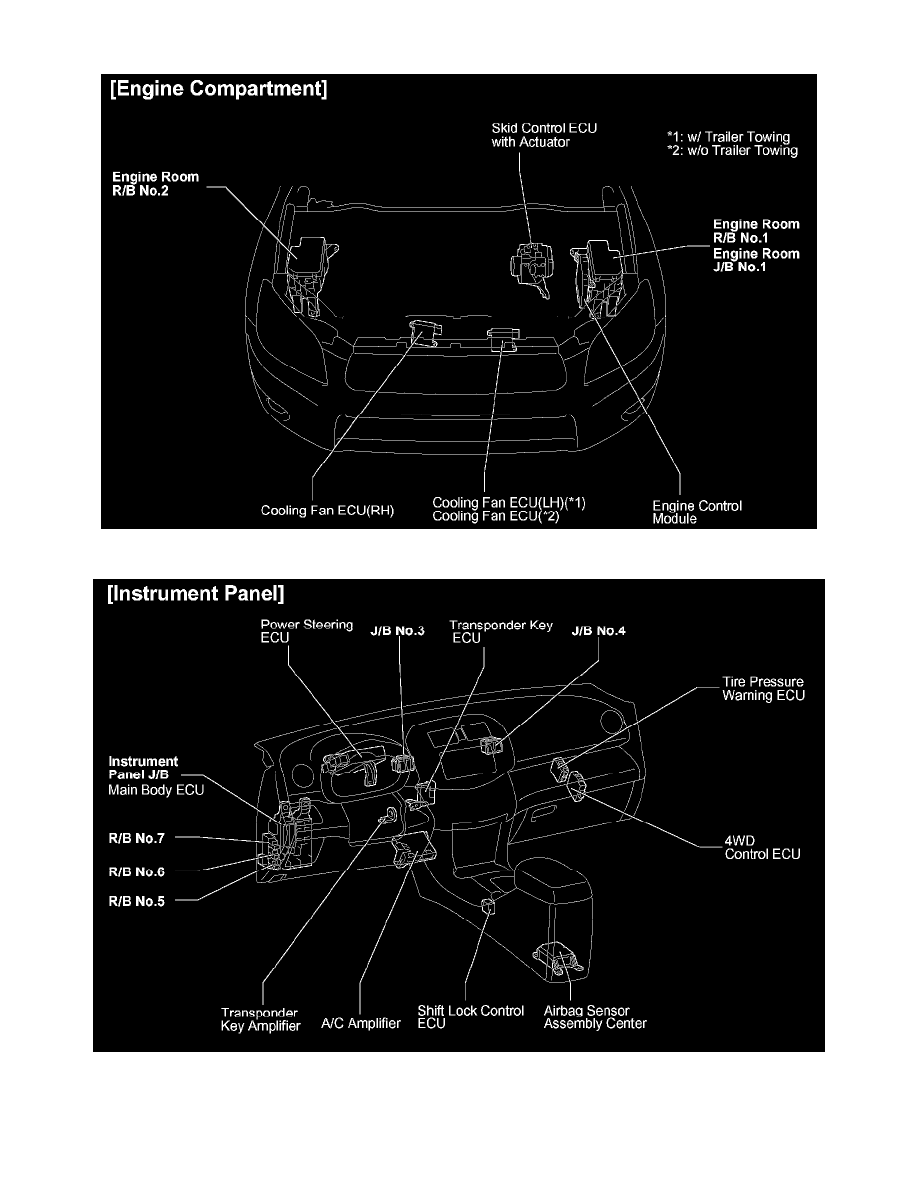

Relay Box: Locations

Engine Compartment

Instrument Panel

Maintenance
Fuses and Circuit Breakers
Relay Box
Component Information
Locations
